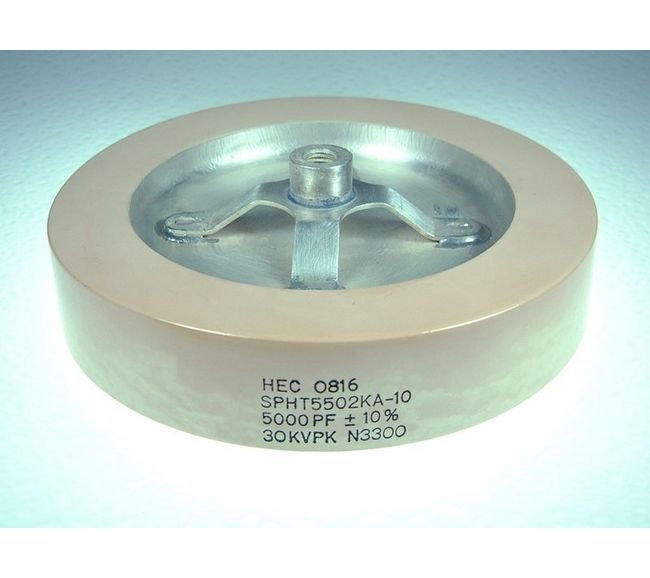

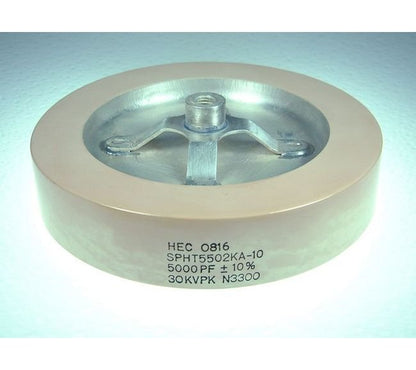

Enhance your power systems with our SPHT 155 mm Diameter Power Disk Ceramic Capacitors. These capacitors offer up to 30 kVDC Working Voltage, a Power Rating of up to 90 kVA, and a Capacitance range of 50 to 7000 pF. Available in 70, 100, 140, and our featured 155 mm Diameters, with a choice of four Class I TC's to suit your needs. Ensure reliable performance and high efficiency with our precision-engineered capacitors designed for industrial and institutional applications.
Product Specifications
Specifications Cap
5000 pF

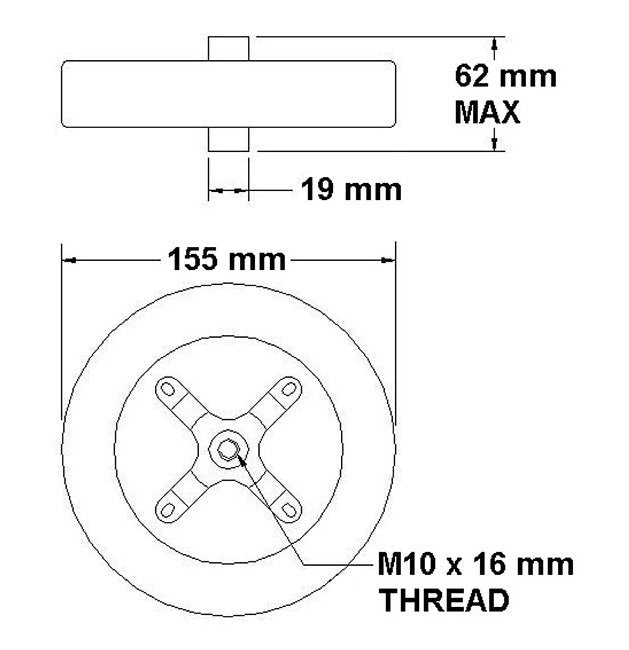

Specifications Diameter
155 mm
Specifications Dielectric Tc
N3300
Specifications Fh
0.0795 MHz
Specifications Fl
0.00636 MHz
Specifications Imax Rms
15 A
Specifications Smax
90 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
