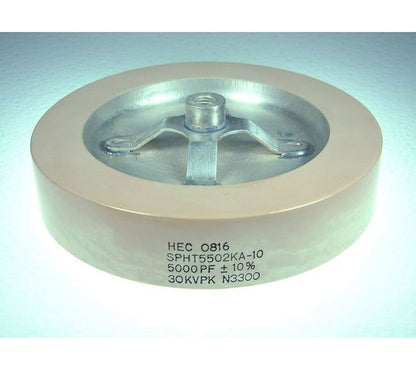

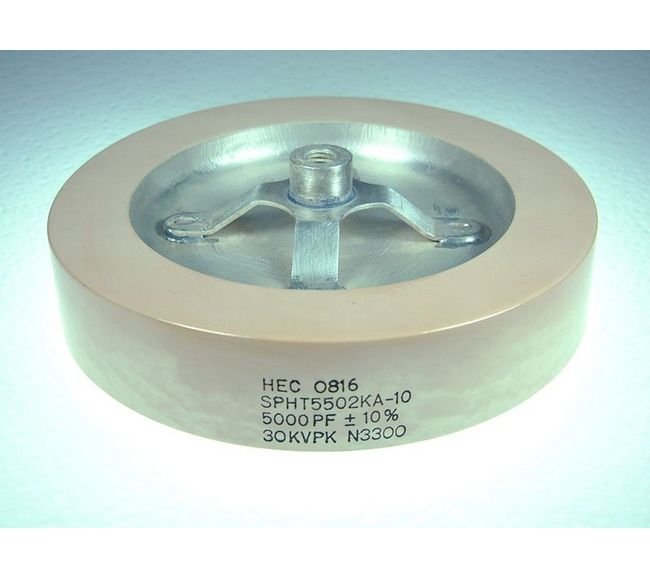

155mm SPHT Power Disk Ceramic Capacitors
155mm SPHT Power Disk Ceramic Capacitors
SKU:CER-584b48
High-performance 155mm SPHT Power Disk Ceramic Capacitors for reliable and efficient operation in diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
155mm SPHT Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
155mm SPHT Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 155mm SPHT Power Disk Ceramic Capacitors offer exceptional performance with up to 30 kVDC working voltage, 90 kVA power rating, and 50 to 7000 pF capacitance. Designed with precision, these capacitors come in a 155mm diameter, featuring NP0 dielectric, and a choice of four Class I TC's. With a robust construction and high-quality materials, these capacitors ensure reliable operation and optimal efficiency for a wide range of applications, meeting stringent industry standards for performance and durability.
Product Specifications
Specifications Cap
750 pF

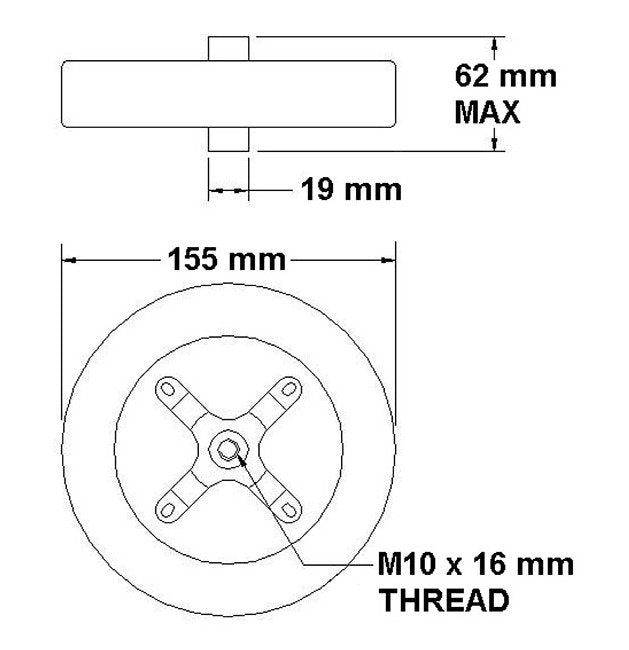

Specifications Diameter
155 mm
Specifications Dielectric Tc
NP0
Specifications Fh
0.442 MHz
Specifications Fl
0.0353 MHz
Specifications Imax Rms
12.5 A
Specifications Smax
75 kV·A
Specifications Thread
M10
Specifications Vmax Dc
30 kV
