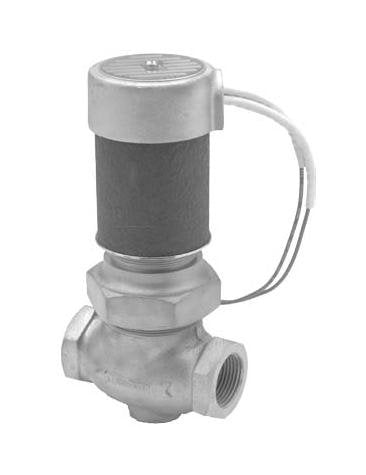

15800 Series Stainless Steel Solenoid Valve
15800 Series Stainless Steel Solenoid Valve
SKU:ATK-4e7080
High-quality stainless steel solenoid valve for medium-pressure fluid applications, featuring reliable performance and versatility in fluid handling.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
15800 Series Stainless Steel Solenoid Valve
$289.99
Quantity: 1
Claim Your Seller Account
15800 Series Stainless Steel Solenoid Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15800 Series Solenoid Valve is a high-quality stainless steel valve designed for medium-pressure fluid applications. Constructed with 316 stainless steel and CF8M for enhanced durability, this valve offers reliable performance in a wide range of environments. With a semi-direct lift action and normally closed operation, it can function effectively at zero pressure differential and handle pressures up to 1500 psi. Suitable for various fluids including hydraulic fluids, steam, and corrosive fluids, this valve is configurable with different seat and seal materials to meet specific requirements. The optional pilot and piston seat materials offer versatility based on fluid types and pressures, making it a versatile choice for institutional and government procurement needs.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 in
Specifications Connection Type
Female NPT
Specifications Cv
12.5

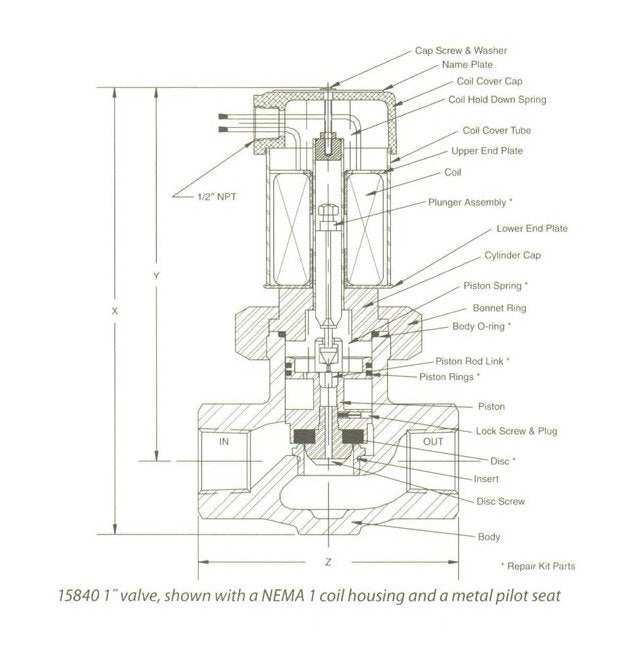

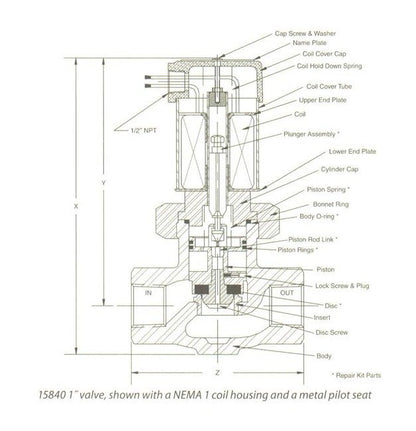

Specifications Dim X
9.1875 in
Specifications Dim Y
7.6875 in
Specifications Dim Z
5.25 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
1 in

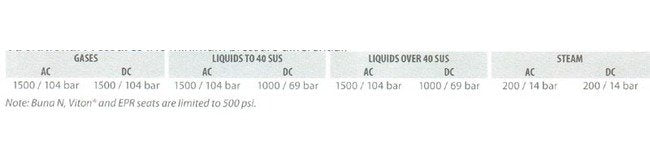

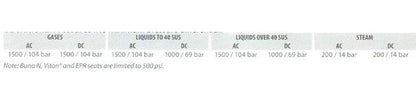

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Teflon®
Specifications Series
15800
Specifications Temperature Range
-423 to 500 ºF | -253 to 260 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
