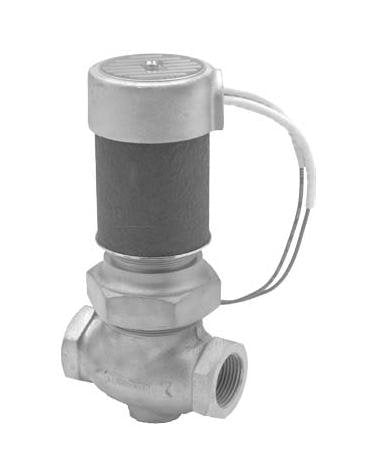

15800 Series Stainless Steel Solenoid Valve
15800 Series Stainless Steel Solenoid Valve
SKU:ATK-f7f98d
Reliable Stainless Steel Solenoid Valve with Viton® Seal, Operates up to 1500 psi, -15 to 400 °F Temp Range
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
15800 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Claim Your Seller Account
15800 Series Stainless Steel Solenoid Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15800 Series Stainless Steel Solenoid Valve is a durable and versatile solution for a wide range of fluid applications. Constructed with stainless steel materials, this semi-direct lift valve operates efficiently from zero pressure up to 1500 psi. With a temperature range from -15 to 400 °F, it can handle various fluids including liquids, gases, hydraulic fluids, and more. Equipped with Viton® seat & seal material, this valve ensures reliable performance and resistance to corrosion. The valve is configurable for different fluid types and pressures, featuring a Cv of 2.50 and Class H coils for optimal functionality.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/8 in
Specifications Connection Type
Female NPT
Specifications Cv
2.50

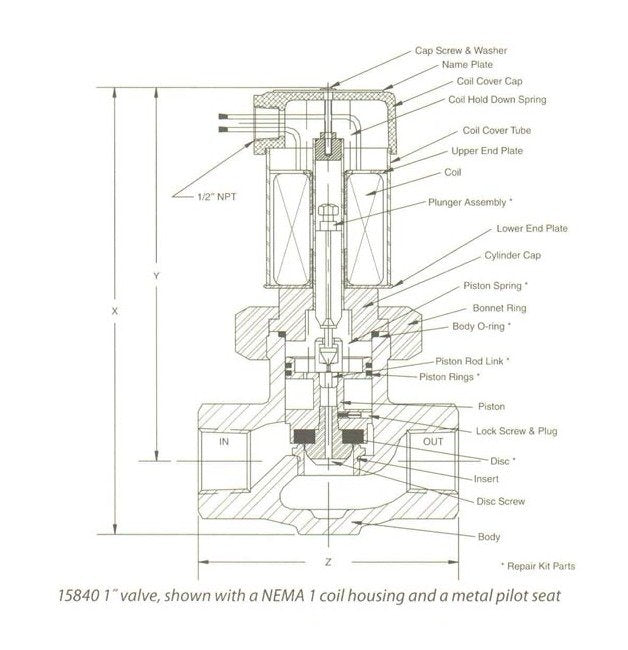

Specifications Dim X
7.375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
.375 in
Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Viton®
Specifications Series
15800
Specifications Temperature Range
-15 to 400 ºF | -29 to 204 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
