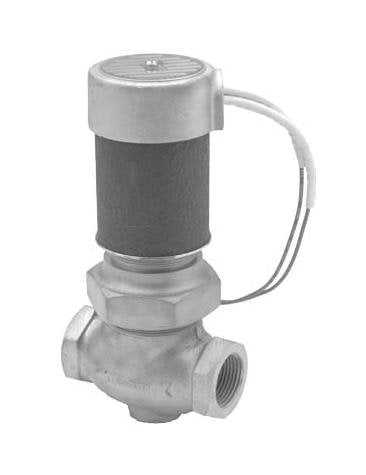

15800 Series Stainless Steel Solenoid Valve
15800 Series Stainless Steel Solenoid Valve
SKU:ATK-6ac481
Durable high-pressure solenoid valve for versatile fluid applications, semi-direct lift action, stainless steel construction.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
15800 Series Stainless Steel Solenoid Valve
$249.99
Quantity: 1
Claim Your Seller Account
15800 Series Stainless Steel Solenoid Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15800 Series Stainless Steel Solenoid Valve is a high-pressure solution designed for a wide range of fluid applications. Constructed with durable 316 stainless steel and CF8M parts, this valve can operate up to 1500 psi and handle temperatures from -65 to 275°F. With a semi-direct lift action and a variety of seat materials available, it ensures reliable performance even with zero pressure differential. Suitable for use with air, gasses, liquids, and corrosive fluids, this valve offers versatility and durability for your fluid control needs.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
3/8 in
Specifications Connection Type
Female NPT
Specifications Cv
2.50

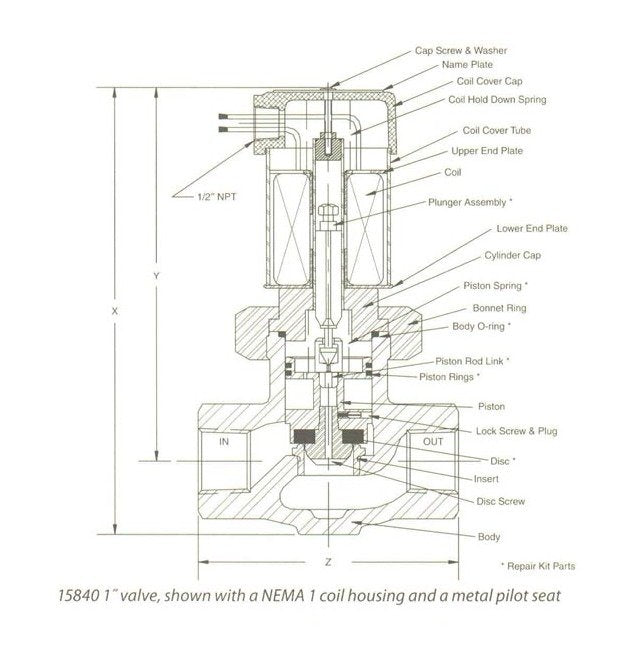

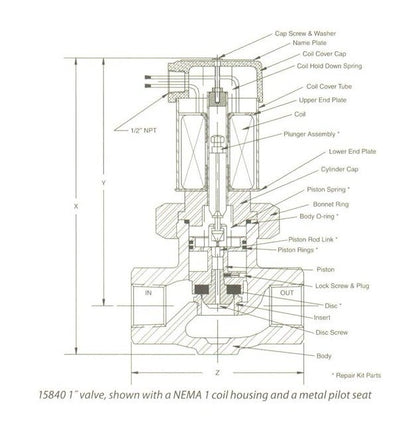

Specifications Dim X
7.375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Liquid up to 40 SUS
Specifications Main Seat Orifice
.375 in

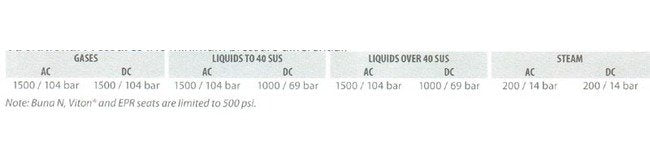

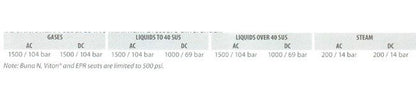

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
15800
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
