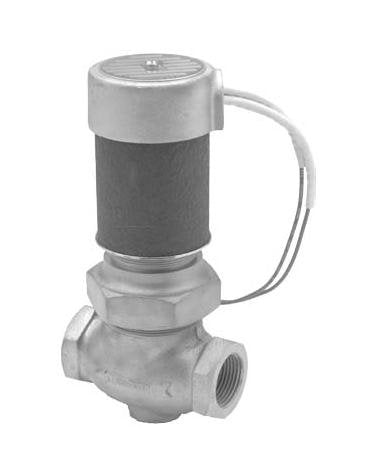

15800 Series Stainless Steel Solenoid Valve
15800 Series Stainless Steel Solenoid Valve
SKU:ATK-761ca2
High-performance stainless steel solenoid valve for medium pressure applications. Wide fluid compatibility range, semi-direct lift action, and high durability.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
15800 Series Stainless Steel Solenoid Valve
$249.99
Quantity: 1
Claim Your Seller Account
15800 Series Stainless Steel Solenoid Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Perfect for medium pressure applications, the 15800 Series Solenoid Valve combines stainless steel construction, semi-direct lift action, and a wide fluid compatibility range. With a pressure rating of 0 to 1500 psig, and operating temperatures from -65 to 300 °F, this valve offers reliability and durability for various fluid types. Featuring options for different seat materials and coil housings, it ensures versatile use in demanding environments.
Product Specifications
Specifications Body Material
Stainless Steel
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1/4 in
Specifications Connection Type
Female NPT
Specifications Cv
1.10

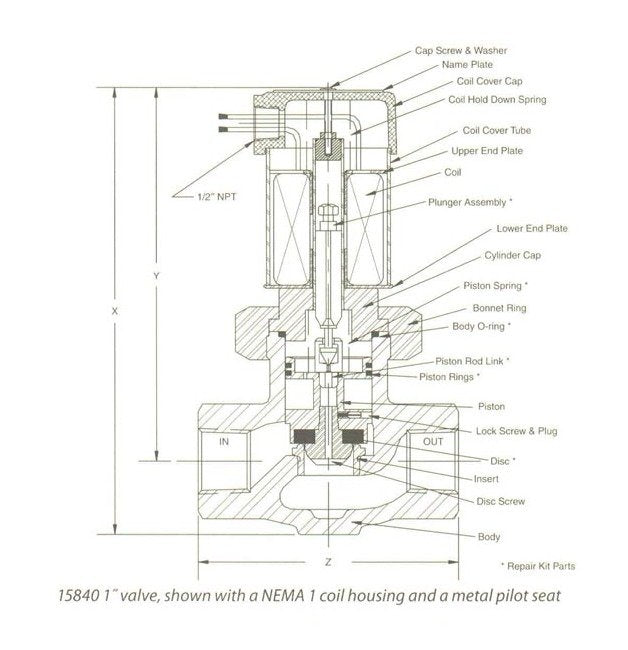

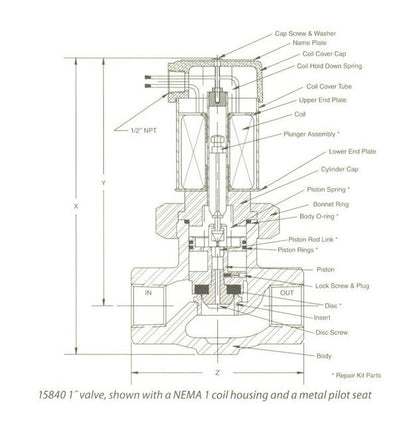

Specifications Dim X
7.375 in
Specifications Dim Y
6.5 in
Specifications Dim Z
3 in
Specifications Fluid Media Type
Gas
Specifications Main Seat Orifice
.375 in

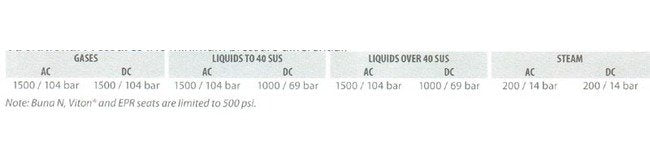

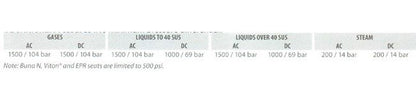

Specifications Operating Pressure
0 to 1500 psig | 0 to 104 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
EPR
Specifications Series
15800
Specifications Temperature Range
-65 to 300 ºF | -54 to 149 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
