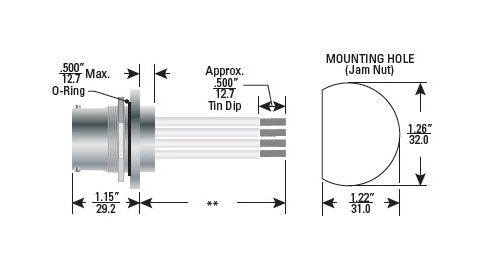

15kVDC 7 Pin Sealed Rear Mount Jam Nut Receptacle Cable Assembly - 1807 Series
15kVDC 7 Pin Sealed Rear Mount Jam Nut Receptacle Cable Assembly - 1807 Series
SKU:HIG-0dc4a2
High voltage 7-pin cable assembly for military and aerospace applications, 15kVDC rating, bayonet coupling, rear mount design.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
15kVDC 7 Pin Sealed Rear Mount Jam Nut Receptacle Cable Assembly - 1807 Series
$99.99
Quantity: 1
Claim Your Seller Account
15kVDC 7 Pin Sealed Rear Mount Jam Nut Receptacle Cable Assembly - 1807 Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15kVDC 1807 Series 7 Pin Sealed Rear Mount Jam Nut Receptacle Cable Assembly is a ruggedized connector ideal for military, aerospace, and high voltage applications. With a voltage rating of 15 kVDC and altitude rating of 70,000 ft, this connector ensures reliable performance in extreme conditions. Featuring a bayonet coupling style, FEP wire insulation, and aluminum coupling nut with nickel finish, it meets stringent industry standards. Designed for easy panel mounting with a rear mount style, this assembly offers a leak rate of 1 X 10-6 cc/sec and complies with federal procurement standards and NIST regulations.
Product Specifications
Contact Properties Contact Finish
Gold with CRES Hood
Contact Properties Contact Material
BeCu
Coupling Nut Properties Coupling Nut Finish
Nickel
Coupling Nut Properties Coupling Nut Material
Aluminum
Specifications Altitude Rating
70,000 ft
Specifications Assembly
Receptacle Bag Assembly
Specifications Braid Termination
Clamp
Specifications Cable Assembly Length
All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.
Specifications Coupling Style
Bayonet
Specifications Current Rating
7.5 A
Specifications Insulator Material
Plastic
Specifications Manufacturing Notes
Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.
Specifications Maximum Leak Rate Helium
1 X 10-6 cc/sec
Specifications Number Of Contacts
7
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
Rear Mount
Specifications Panel Mounting Torque
84 ± 2 in.lb
Specifications Pressure Differential Rating
Sealed for 1 ATM
Specifications Series
1807
Specifications Test Voltage At 70000 Ft
22 kVDC
Specifications Voltage Rating
15 kVDC
Specifications Wire Insulation
FEP
