15kVDC Right Angle Double-Ended High Voltage SID Plug Cable Assembly
15kVDC Right Angle Double-Ended High Voltage SID Plug Cable Assembly
SKU:HIG-a53995
Reliable 15kVDC high voltage SID plug cable assembly for military and aerospace use. Withstands extreme conditions for secure connections.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
15kVDC Right Angle Double-Ended High Voltage SID Plug Cable Assembly
$129.99
Quantity: 1
Claim Your Seller Account
15kVDC Right Angle Double-Ended High Voltage SID Plug Cable Assembly
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 15kVDC Right Angle Double-Ended High Voltage SID Plug Cable Assembly is designed for military and aerospace applications, offering a reliable high voltage connection. With a 20 kVDC test voltage at 70,000 ft. altitude, this silicone assembly withstands extreme conditions such as vibration, shock, and temperature variations. The push-pull coupling style and BeCu female contact material ensure secure mating compatibility and excellent corona characteristics.
Product Specifications
Body Properties Coupling Nut Material
Silicone
Contact Properties Contact Finish
Au with CRES Hood
Contact Properties Contact Material
BeCu
Contact Properties Contact Type
Female
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type

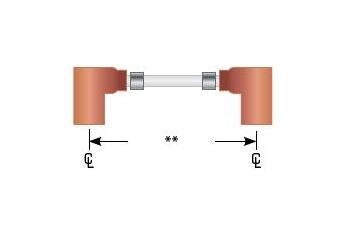

Double-Ended Right Angle Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
5 Amp
Specifications Export Classification
TBD
Specifications Insulator Material
Silicone
Specifications Mating Compatibility
Mates all SID receptacles
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
SID
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
20 kVDC at 70,000 ft. altitude (simulated)
Specifications Voltage Rating
15 kVDC
Specifications Wire Type
Non-Shielded
Wire Properties Accomodates Wire Diameter
0.165 in | 4.1 mm
Wire Properties Wire Insulation
Silicone | Silicone Rubber
