15mm UM6 Grade Carbide Rod with Dual 30° Precision Holes
15mm UM6 Grade Carbide Rod with Dual 30° Precision Holes
SKU:SOL-04b118
High-precision 15mm UM6 Grade Carbide Rod with Dual 30° Holes for industrial use. Polished finish, ISO h6 compliant, perfect for precise machining.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
15mm UM6 Grade Carbide Rod with Dual 30° Precision Holes
$79.99
Quantity: 1
Claim Your Seller Account
15mm UM6 Grade Carbide Rod with Dual 30° Precision Holes
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

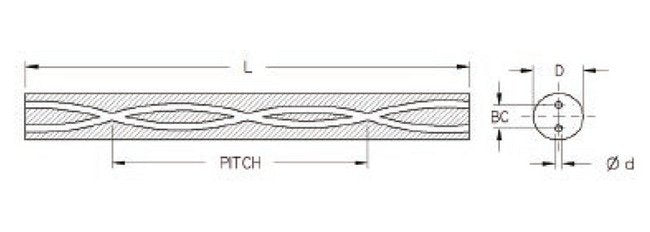

The 15mm UM6 Grade Two Hole 30 Degree Precision Ground Reduced Between Centers Carbide Rod is a highly durable and precise tool designed for industrial applications. This rod features a polished finish, a diameter of 15mm, a length of 330mm with a tolerance of +5mm | 0mm, and dual 1.75mm holes with a tolerance of ±0.20mm. The Between Centers (BC) Diameter is 7.3mm with a tolerance of 0/-0.40mm, ensuring consistent performance. With a Carbide Grade of UM6, this rod guarantees superior strength and wear resistance. Compliant with ISO tolerance standards (h6), this rod is ideal for machining operations requiring precision and reliability.
Product Specifications
Classifications Between Centers Bc Diameter
7.3 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM6
Classifications Diameter
15 mm
Classifications Finish
Polished
Classifications Hole D
1.75 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
81.62 mm
Classifications Shipping Weight
0.997732582 Kilogram
