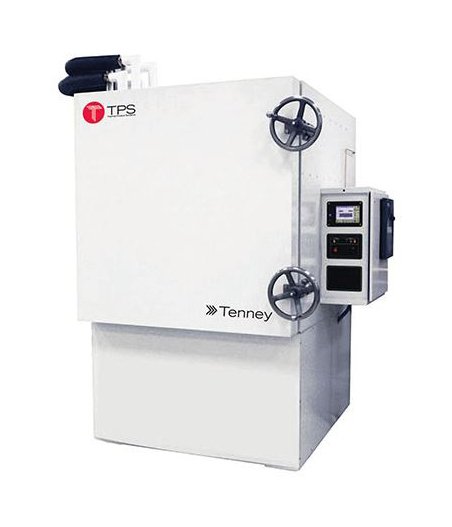

15ST, Tenney Strat Altitude Chamber

Name: 15ST, Tenney Strat Altitude Chamber
Brand: Thermal Product Solutions
SKU: TEN-a5d71d
Price: 49.99 USD
Availability: OutOfStock

SKU:TEN-a5d71d

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Tenney’s Tenney Strat Altitude Chambers simulate altitudes up to 200,000 feet. With an overall temperature range of -70°C to +177°C, humidity capabilities of 20% to 98% RH, and workspace sizes ranging from 5- to 64-cubic-feet, this highly developed line of altitude chambers offers one of the broadest selections in the industry. We are confident that our solid altitude chamber construction and precise operating systems will provide the exacting performance and a high degree of reliability for your altitude testing needs.

Product Specifications

Specifications Cooling Water Flow Rate 20c

3 gpm | 6 gpm

Specifications Current

52 A | 85 A

Specifications Exterior Depth

111 in | 236 in | 2819 mm | 5994 mm

Specifications Exterior Height

84 in | 213 in | 2134 mm | 5410 mm

Specifications Exterior Width

130 in | 52 in | 1320 mm | 3302 mm

Specifications Features

Continuously welded, stainless steel, vapor-tight interior liners | Control tolerance is ±0.3°C and ±2% RH typical after stabilization | Linear pressure transducer to measure altitude | Non-corroding humidity system | Low-water protection on humidity system | Vertical-down recirculating conditioning stream

Specifications Fuse Current

70 A | 120 A

Specifications Heater Capacity

Specifications Humidifier

1 W | 0.5 gph

Specifications System Horsepower

6 hp | 15 hp

Specifications Voltage

230 V

Specifications Weight

4850 lb | 2200 kg

Specifications Workspace Depth

36 in | 91 in | 914 mm | 2311 mm

Specifications Workspace Height

30 in | 76 in | 762 mm | 1930 mm

Specifications Workspace Width

24 in | 61 in | 609 mm | 1549 mm
