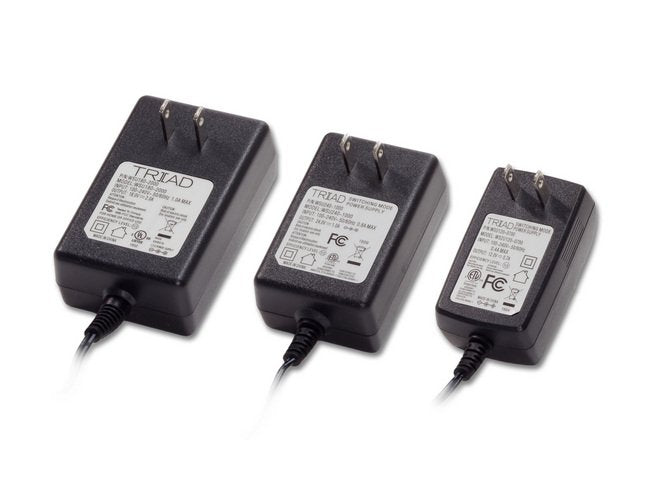

15V 0.56A Wall Plug-In Switch Mode Power Supply
15V 0.56A Wall Plug-In Switch Mode Power Supply
SKU:WAL-52ee5e
Efficient 15V 0.56A Wall Plug-In Power Supply with regulated output voltage and tamper-resistant enclosure. Meets EIAS 2007 efficiency standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
15V 0.56A Wall Plug-In Switch Mode Power Supply
$29.99
Quantity: 1
Claim Your Seller Account
15V 0.56A Wall Plug-In Switch Mode Power Supply
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your product design efficiency with the 15V 0.56A Wall Plug-In Switch Mode Power Supply. Designed to reduce noise levels, size, and weight, this power source is enclosed for tamper resistance and offers regulated output voltage for stable performance. With Level IV and V efficiency, this power supply meets EIAS 2007 energy efficiency standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Case Dimensions Depth D
1.37 in | 34.80 mm
Case Dimensions Height H
2.67 in | 67.70 mm
Case Dimensions Width W
1.81 in | 45.90 mm
Output Plug Dimensions Inside Diameter Id
0.083±0.004 in | 2.1 mm
Output Plug Dimensions Length L
0.433±0.020 in | 11 mm
Output Plug Dimensions Outside Diameter Od
0.217±0.004 in | 5.5 mm
Specifications 2007 Eisa Efficiency
VI
Specifications Input Operating Frequency
50 Hz | 60 Hz
Specifications Input Voltage Ac
100 to 240 V
Specifications Maximum Power
8.40 W
Specifications Output Current
0.56 A
Specifications Output Current Dc
0.56 A
Specifications Output Voltage Dc
15.0 V
Specifications Polarity Center
Positive
Specifications Type
Switchmode
