16.00mm UM10 Grade Carbide Hole Rod
16.00mm UM10 Grade Carbide Hole Rod
SKU:SOL-daf77e
High-precision 16.00mm UM10 Grade Carbide Rod for accurate machining, with 1.50mm coolant hole and polished finish.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
16.00mm UM10 Grade Carbide Hole Rod
$89.99
Quantity: 1
Claim Your Seller Account
16.00mm UM10 Grade Carbide Hole Rod
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

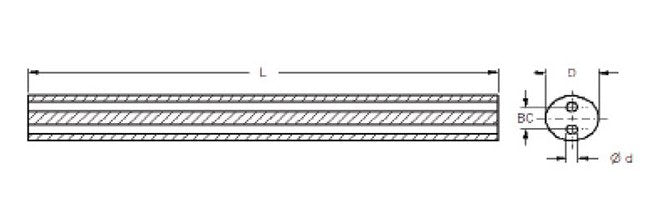

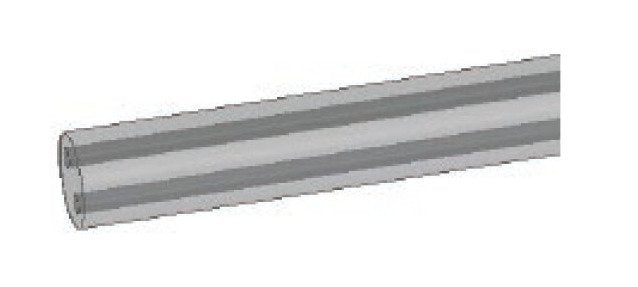

The 16.00mm UM10 Grade Precision Ground Carbide Hole Rod is designed for precision machining applications requiring high accuracy and durability. With a polished finish, a precise diameter of 16.00mm, and a length of 330mm (+5 mm tolerance), this rod ensures optimal performance. The 1.50mm coolant hole adds versatility, while meeting h6 ISO tolerance standards. Crafted from high-quality carbide, this rod is a reliable choice for industrial settings.
Product Specifications
Classifications Between Centers Bc Diameter
5.0 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
16.00 mm
Classifications Finish
Polished
Classifications Hole D
1.50 mm
Classifications Hole D Tolerance
0.20 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
1.035027799 Kilogram
