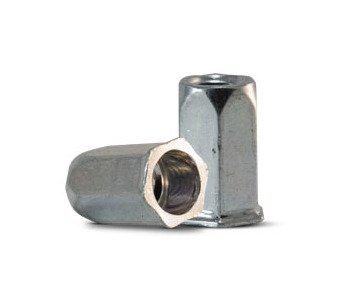

16.0mm Full Hexagon Reduced Countersunk Head Rivet Nut

Name: 16.0mm Full Hexagon Reduced Countersunk Head Rivet Nut
Brand: Ornit USA
SKU: ASE-658b55
Price: 12.99 USD
Availability: OutOfStock

SKU:ASE-658b55

High-quality 16.0mm Full Hex Reduced Countersunk Head Rivet Nut by Ornit for secure and precise fastening applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The A-Series 16.0mm Full Hexagon Reduced Countersunk Head Rivet Nut by Ornit is a high-quality fastening solution designed for robust performance. Made from durable steel with a yellow zinc plated finish, this rivet nut offers superior grip ranging from 0.5mm to 3.0mm. The small reduced countersunk head provides a sleek appearance while ensuring a secure fit. With dimensions meticulously crafted for precision, this rivet nut is also available in stainless steel and aluminum variants with serration style options. Compliant with federal procurement standards and industry certifications, this rivet nut is an ideal choice for both consumer and institutional buyers.

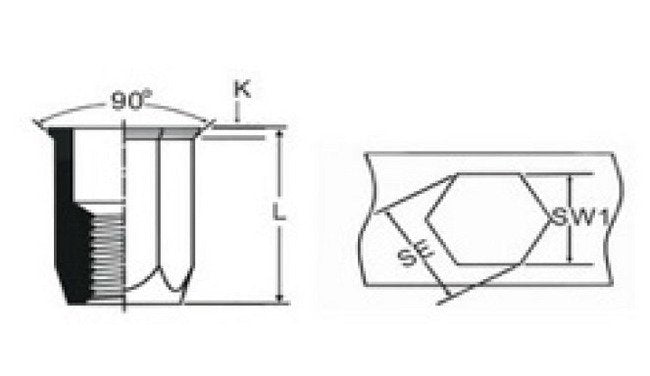

Product Specifications

Dimensions Dimension D2

10.0 mm

Dimensions Dimension K

0.8 mm

Dimensions Dimension L

16.0 mm

Dimensions Dimension Se

10.2 mm

Dimensions Dimension Sw1

9.1 mm

Dimensions Maximum Grip Range

3.0 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Reduced Countersunk Head (Small)

Technical Specs Material

Steel

Technical Specs Rivet Type

Full Hexagone

Technical Specs Thread Size

M6 | SW 9.0
