16.30mm UM12 Grade Carbide Rod
16.30mm UM12 Grade Carbide Rod
SKU:SOL-a616f5
High-quality 16.30mm UM12 Grade Carbide Rod for precision machining applications. Durable and reliable with tight tolerances for accurate results.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
16.30mm UM12 Grade Carbide Rod
$45.99
Quantity: 1
Claim Your Seller Account
16.30mm UM12 Grade Carbide Rod
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

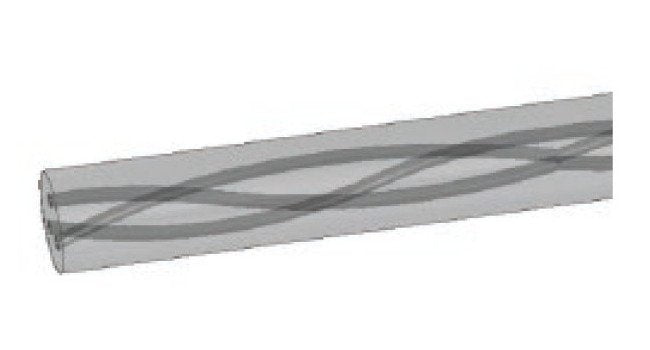

The 16.30mm UM12 Grade Three Hole 30 Degree Unground Random Length Carbide Rod is a top-quality carbide rod designed for precision machining applications. With a diameter of 16.30mm and a length of 330mm (+5mm | 0mm tolerance), it offers exceptional durability and performance. The rod features a hole diameter of 1.60mm with a tight tolerance of ±0.20mm, ensuring accurate and reliable machining. Manufactured with UM12 carbide grade, this rod is highly resistant to wear and can withstand high-speed cutting operations. Ideal for industrial and manufacturing settings, this carbide rod delivers superior results with every use.

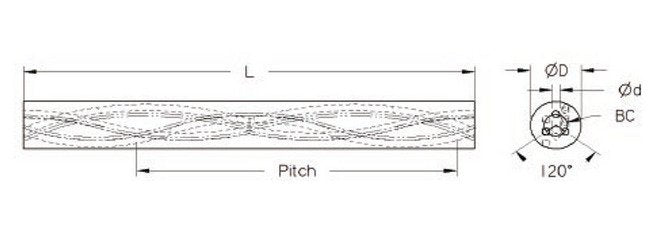

Product Specifications
Classifications Between Centers Bc Diameter
8.05 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
16.30 mm
Classifications Finish
Unground
Classifications Hole D
1.60 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
87.06 mm
Classifications Shipping Weight
1.124711199 Kilogram
