16.30mm UM6 Grade Three Hole Carbide Rod
16.30mm UM6 Grade Three Hole Carbide Rod
SKU:SOL-318d55
Premium 16.30mm UM6 Grade Carbide Rod for precision machining, durable and versatile.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
16.30mm UM6 Grade Three Hole Carbide Rod
$49.99
Quantity: 1
Claim Your Seller Account
16.30mm UM6 Grade Three Hole Carbide Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

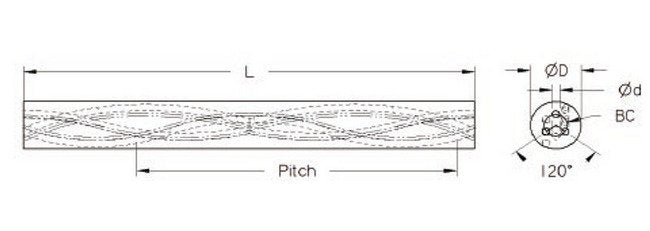

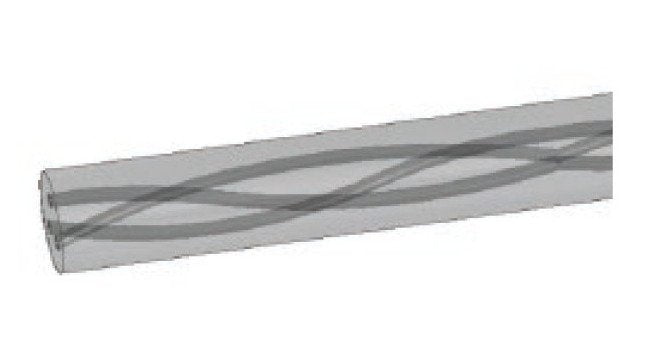

The 16.30mm UM6 Grade Three Hole 30 Degree Carbide Rod is a premium unground carbide rod designed for precision machining applications. With a diameter of 16.30mm and a length of 330mm (+5mm | 0mm tolerance), this carbide rod offers exceptional durability and performance. The three precision holes, including a 1.60mm hole, ensure versatile applications. Manufactured with high-quality carbide material and adhering to strict standards, this rod is ideal for industrial settings requiring reliable and efficient machining.
Product Specifications
Classifications Between Centers Bc Diameter
8.05 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM6
Classifications Diameter
16.30 mm
Classifications Finish
Unground
Classifications Hole D
1.60 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
87.06 mm
Classifications Shipping Weight
1.124711199 Kilogram
