16 AWG FEP High Voltage Wire
16 AWG FEP High Voltage Wire
SKU:HIG-8759db
16 AWG FEP High Voltage Wire - Exceptional dielectric strength, smaller diameter, and superior durability for high voltage applications. Operating Temp: -55 to +125°C
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16 AWG FEP High Voltage Wire
$29.99
Quantity: 1
Claim Your Seller Account
16 AWG FEP High Voltage Wire
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

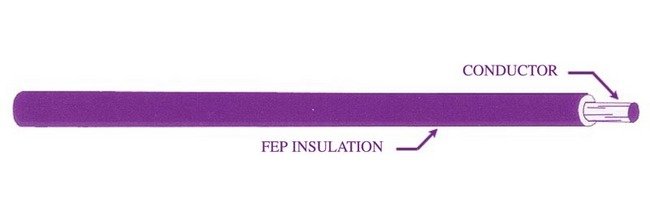

The 16 AWG FEP High Voltage Wire is designed for exceptional dielectric strength, offering advantages over silicone rubber cables in terms of smaller diameter, better space utilization, and durability. With good corona inception qualities, this wire is resistant to dielectric/cooling fluid degradation, making it ideal for high voltage hook up wire applications. Its FEP insulation provides enhanced resistance to pin-holing, punch-thru, and damage, ensuring reliable performance even under harsh conditions. Pre-conditioning is recommended for temperature cycling stability. Operating Temperature: -55 to +125 °C.
Product Specifications
Cable Wire Properties Jacketed
No
Cable Wire Properties Silicone Coated
No
Specifications Conductor Diameter
0.180 in
Specifications Conductor Gauge
16 AWG
Specifications Conductor Material
Copper
Specifications Default Color
Natural
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Standardnon Standard
Standard Part
