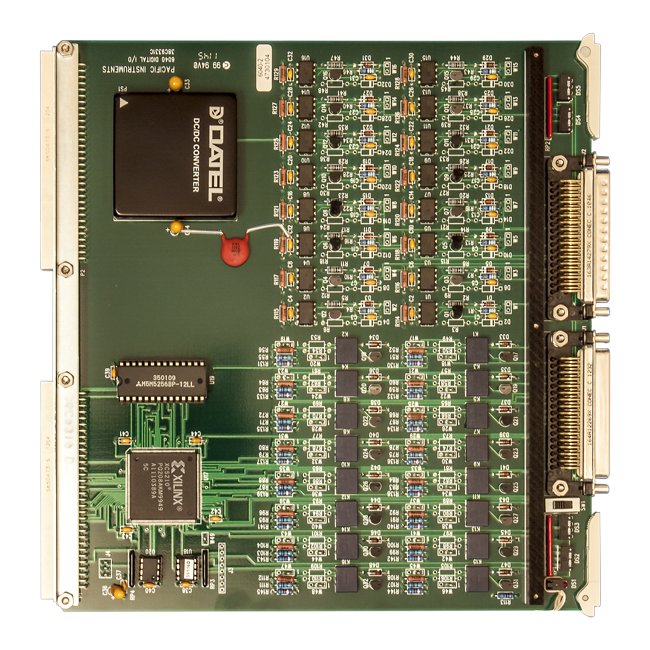

The 16-Bit Digital Input/Output Module is a versatile solution for integrated conditioning, acquisition, and control systems. Featuring 16 digital inputs for event recording and 16 digital outputs for seamless control, this module offers compatibility with TTL and CMOS logic levels in the 6040-1 version, while the 6040-2 version provides optic isolated inputs and isolated relay outputs. With automatic alarm responses, glitch capture capabilities, and input/output status displays, the 16-Bit Digital I/O Module ensures precise monitoring of critical events and enables programmable actions in response to alarms. Ideal for institutional buyers, this module meets rigorous procurement standards and industry certifications for reliable performance in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Connectors
50-pin type D connector for inputs and 50-socket type D connector for outputs. Connectors are on the front and mates are supplied.
General Humidity
Up to 95% without condensation.
General Mounting
Occupies one slot in Series 6000 enclosures.
General Temperature
0 to +50 ºC
Input Glitch Capture
Enabled by software to detect and record events of 100 nS or longer duration that occur between sample periods. Reset on reading.
Input Isolation Input Isolation
6040-2 - 450 Volts RMS between inputs and input to common.
Input Logic Levels Input Logic Levels
6040-1 - TTL/CMOS. Off is less than +0.8 Volts; on is greater than +2.0 Volts. Inputs protected to ±50 Volts. | 6040-2 - Optic isolated. Off is less than 1.5 Volts; on is greater than 4.8 Volts. Input impedance is 500 Ohms. Inputs protected to ±50 Volts.
Input Number Input
16 inputs, organized as one 16-bit data word.
Input Synchronization
Inputs are captured coincident within 50 nS of the sampling of analog signals in other Series 6000 input modules.
Ordering Information Ordering Information
6040-1 - Digital I/O Module, TTL/CMOS inputs, CMOS outputs. | 6040-2 - Digital I/O Module, optic isolated inputs, form C relay outputs.
Outputs Alarm Outputs
Pre-programmed output vector automatically set in response to alarm violation. Latency is less than 1mS from the digitizing of signal causing alarm.
Outputs Number Outputs
16 outputs, programmed as one 16-bit word.
Outputs Programming
Output data word is loaded by program instruction during time when measurement data is not being sent to the computer. Latency will depend on system throughput rate and scan table programming.
Output Logic Levels Output Logic Levels
6040-1 - CMOS. On is +4.8 Volts minimum; off is +0.15 Volts maximum from 1K Ohm source impedance. | 6040-2 - One form C contact rated for 1 A at 30 VDC. Maximum voltage 220 VDC.
Overview Measurement Type
Digital In | Digital Out
