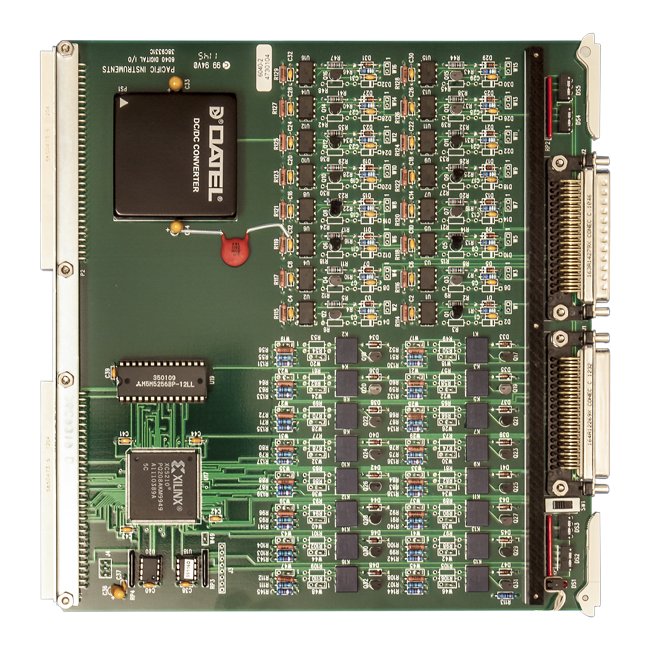

The 16-Bit Digital Sequencer Control Module, part of the 6000 Series Digital I/O Modules, offers precise control with 16 programmable outputs. With ±0.01% time accuracy and 1ms resolution, this sequencer ensures seamless activation of equipment in a programmed sequence. Choose between TTL/CMOS (6041-1) or form C relay (6041-2) outputs based on your application needs. Initiate, stop, and monitor sequences effortlessly with cascading delay times for extended control flexibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
General Connectors General
50-pin type D connector inputs and 50-socket type D connector for outputs. Connectors are on the front and mates are supplied.
General Humidity
Up to 95% without condensation.
General Mounting
Occupies one slot in Series 6000 enclosures.
General Temperature
0 to +50 ºC
Input Logic Levels Input Logic Levels
6041-1 - TTL/CMOS. Off is less than +0.8 Volts; on is greater than +2.0 Volts. Protected to 50 Volts. | 6041-2 - Optic isolated, off is less than 1.45 Volts; on is greater than 3.70 Volts. Input impedance is 360 Ohms. Protected to 50 Volts.
Ordering Information Ordering Information
6041-1 - 16-Bit Sequencer, TTL/CMOS In, CMOS Out. | 6041-2 - 16-Bit Sequencer, Optic Isolated In, Form C relay Out.
Output Logic Levels Output Logic Levels
6041-1 - TTL/CMOS. On is +4.8 Volts minimum; off is +0.15 Volts maximum from 1K Ohm source impedance. | 6041-2 - One form C contact rated for 2 A at 30 VDC. Maximum voltage is 220 VDC.
Overview Measurement Type
Digital In | Digital Out | Sequencer
Sequencer Connectors Sequencer
Input connector is 50-pin Type D, output connector is 50-socket Type D. Mating connectors are supplied.
Sequencer Delay Time
1 mS to 1 hour. Delays may be cascaded for longer times.
Sequencer Outputs 6040 1
16 TTL/CMOS.
Sequencer Outputs 6040 2
16 single-pole form C relay.
Sequencer Sequence
Each output may be programmed to change state up to 16 times.
Sequencer Start
Sequence is started by the 6041's start input, initiation of the system preview mode or initiation of the system record mode.
Sequencer Status
Status of the sequencer outputs may be read by including the sequencer's outputs in the scan list.
Sequencer Stop
Sequence is stopped and reset after the longest programmed delay time or by the stop control input.
