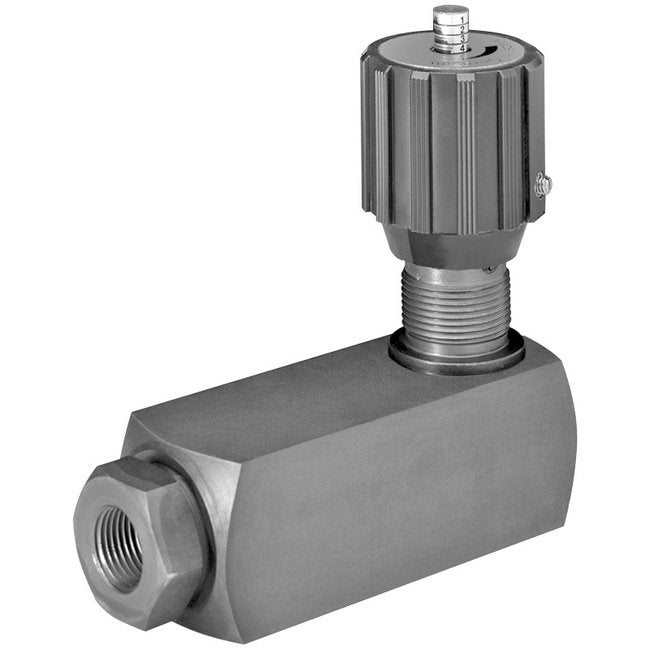

16 BSPP Pressure Compensated Flow Control Valve with Check
16 BSPP Pressure Compensated Flow Control Valve with Check
SKU:ACC-d1eb55
The SRVR-16 BSPP Flow Control Valve provides precise flow regulation with safety features, ideal for diverse applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
16 BSPP Pressure Compensated Flow Control Valve with Check
$349.99
Quantity: 1
Claim Your Seller Account
16 BSPP Pressure Compensated Flow Control Valve with Check
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRVR-16 BSPP Pressure Compensated Flow Control Valve with Check is designed to meet the highest industry standards, including DIN 3852. Made of durable carbon steel, this valve ensures precise flow control with its color-coded spindle and unique safety spindle design. With a wide temperature and pressure range, and FPM O-Rings as standard, this valve is ideal for a variety of applications. Whether for consumer or institutional use, this valve guarantees reliable and efficient performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Dimension B
3.88 in | 98.5 mm
Dimensions Dimension C
0.98 in | 25 mm
Dimensions Dimension D
1.97 in | 50 mm
Dimensions Dimension E
1.02 in | 26 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.50 in | 38 mm
Specifications Diameter H
0.91 in | 23 mm
Specifications Dimension A
4.27 in | 108.5 mm
Specifications Dimension F
5.51 in | 140 mm
Specifications Division
ACCESSORIES
Specifications End Size
G 3/4
Specifications End Type
BSPP
Specifications Finish
Zinc Plated
Specifications Hex Size
1.61 in | 41 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Model Code Description
SRVRP-16-01.X
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
G 3/4
Specifications Second End Type
BSPP
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
4.9 kg | 2.2 lb
Specifications Worksheet Tab Name
Hydac
