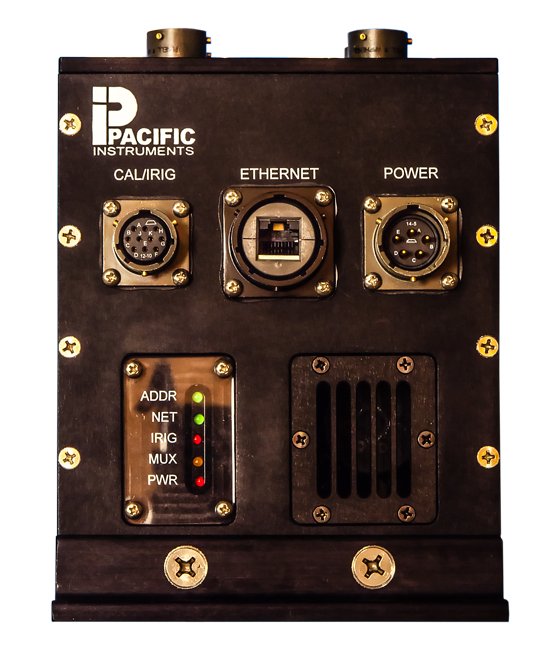

The High-Speed Ruggedized 16-Channel Ethernet Data Acquisition System by Pacific offers exceptional data collection and control capabilities for industrial and research applications. Featuring real-time temperature compensation, 24-bit programmable A/D, and 45 kHz bandwidth, this rugged system is designed to thrive in demanding environments. With multiple models catering to strain gage, bridge, and voltage transducers, it provides precise measurements with up to 100k samples per second per channel. The 1 Gigabit Ethernet interface enables seamless connectivity and synchronization across multiple modules, while the compact design ensures easy installation and operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accuracy 73007400 Accuracy
The system maintains ±0.05% (Model 7316 ±0.025%) full scale (2-sigma) uncertainty for gains up to 200 and ±0.1% full scale (2-sigma) uncertainty for gains above 200 over the operating temperature range.
Amplifier Bandwidth
45 kHz (-3dB)
Amplifier Common Mode
60 dB plus gain in dB to 110 dB, DC to 60 Hz.
Amplifier Crosstalk
100 dB at 10 kHZ
Amplifier Gain
Programmable from 1 to 1,000 with 0.02% resolution. Thirteen calibrated gain steps are provided: 1, 2, 3, 5, 10, 20, 30, 50, 100, 200, 300, 500, 1000 with ±0.02% accuracy up to Gain 200, ±0.05% accuracy above Gain 200.
Amplifier Gain Linearity
±0.02 %
Amplifier Gain Stability
±0.01% for 30 days, ±0.001%/ºC compensated.±0.05% for 30 days, ±0.005%/ºC without compensation.
Amplifier Harmonic Distortion
90 dB at 10 kHz
Amplifier Input Range
±10 mV to ±10 Volts. (7324 DC or AC coupled, other models DC coupled)
Amplifier Noise 50 Khz
3.0 µV RTI plus 0.3 mV RTO, RMS
Amplifier Operating Cm Voltage
±10 V
Amplifier Overload
Recovery time is 120 µS to within ±0.1% for a 10 times overload to ±10 Volts.
Amplifier Source Current
±40 nA, ±0.4 nA/°C
Amplifier Zero Amplifier
Automatic zero to ±2 µV RTI or ±1.0 mV RTO whichever is greater.
Amplifier Zero Stability
±2 µV RTI plus ±1 mV RTO over the full temperature range.
Calibration Shunt
Two steps, single shunt. Internal or external shunt connection.
Calibration Shunt Resistors
Installed shunt resistors provide 0.502 and 0.250, ±0.1% mV/V for 350 Ohm bridge.
Calibration Voltage Calibration
The output of a temperature stable, 5-Volt internal reference with ±0.01% stability, X1.0, X0.1 and X0.01 ±0.05% attenuator and 0.0015% resolution on each attenuator setting may be applied to each channel. Accuracy is ±0.2% for gains to and including 100 and ±0.3% for gains over 100. Stability is ±0.01%. Output of the internal reference can be measured on an external connector.
Calibration Zero Calibration
Amplifier input disconnected and shorted for zero calibration.
Digitizer Rate
Individual channels may be programmed to output data at rates up to 102.4 kHz. Supports all sixteen channels at the highest sample rate.
Digitizer Resolution
24-bits, Sigma-Delta type.
Excitationtransducer Power Compliance Constant Current Excitatio
7324: 24 Volts minimum.
Excitationtransducer Power Current Excitation
7324: Programmable 5 mA to 50 mA with calibrated 5 mA steps ±0.1%.
Excitationtransducer Power Current Excitation Noise
7324: 2 µA or 5 µV peak-to-peak DC to 10 kHz.
Excitationtransducer Power Current Excitation Stability
7324: ±0.01% or ±2 µA for 30 days. Temperature coefficient is less than ±0.005% or ±1 µA/°C.
Excitationtransducer Power Current Regulation
7324: ±0.01% or ±0.1µA for 10% line change.
Excitationtransducer Power Transducer Power
7320: Regulated voltage. Programmable from 1 to 15 Volts in 1V steps. Regulation and stability ±1%
Excitationtransducer Power Voltage Excitation
7316: Constant voltage with remote sensing. Programmable from 1 to 15 Volts with 1 mV resolution. Calibrated 1-Volt steps ±0.1%. 50 mA limited to 70 mA maximum.
Excitationtransducer Power Voltage Excitation Noise
200 µV peak-to-peak, DC to 10 kHz
Excitationtransducer Power Voltage Excitation Regulation
±0.1% over input voltage range and no-load to full load.
Excitationtransducer Power Voltage Excitation Stability
±0.01%, 0.001%/°C
Filter Frequency
Programmable from 10 Hz to 50 kHz with 80 dB/octave attenuation above cut-off.
Filter Type
Finite Impulse Response (FIR) with 128 coefficients.
Input Bridge Balance
7314 & 7316: Automatic by program control. Balance accuracy ±0.025% of range, ±1 mV RTO. Range set by resistor up to 25 mV/V, 2.5 mV/V (350 Ohms) installed.
Input Configuration
7314: Six-wire input, signal input (2), excitation (2), excitation sense (2) and shield. Programmable bridge completion for half bridges and 120 Ohm and 350 Ohm quarter bridges. | 7316: Six-wire input, signal input (2), excitation (2), excitation sense (2) and shield. Programmable bridge completion for half bridges and 120 Ohm and 350 Ohm quarter bridges. | 7318: Two-wire input, signal input (2) and shield. | 7320: Four-wire input, signal input (2), transducer power (2) and shield. | 7324: Six-wire input, signal input (2), excitation (2), excitation sense (2) and shield. Programmable bridge completion for half bridges and 120 Ohm and 350 Ohm quarter bridges. Programmable AC or DC coupled input.
Input Input Impedance
7324: 100K Ohms AC coupled. | 50 Megohms, shunted by 500 pF DC coupled.
Mechanical Depth
12 in
Mechanical Height
7.75 in
Mechanical Power Mechanical
20 to 30 VDC, 3A
Mechanical Width
5.25 in
