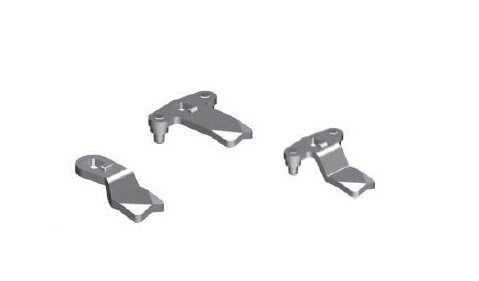

16 Dimension H Standard Quarter Turn Cam, Style D, Zinc Plated
16 Dimension H Standard Quarter Turn Cam, Style D, Zinc Plated
SKU:IND-dfa7d5
Enhance your security with the 16 Dimension H Standard Quarter Turn Cam in Style D, ideal for efficient locking solutions in industrial environments.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
16 Dimension H Standard Quarter Turn Cam, Style D, Zinc Plated
$25.99
Quantity: 1
Claim Your Seller Account
16 Dimension H Standard Quarter Turn Cam, Style D, Zinc Plated
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

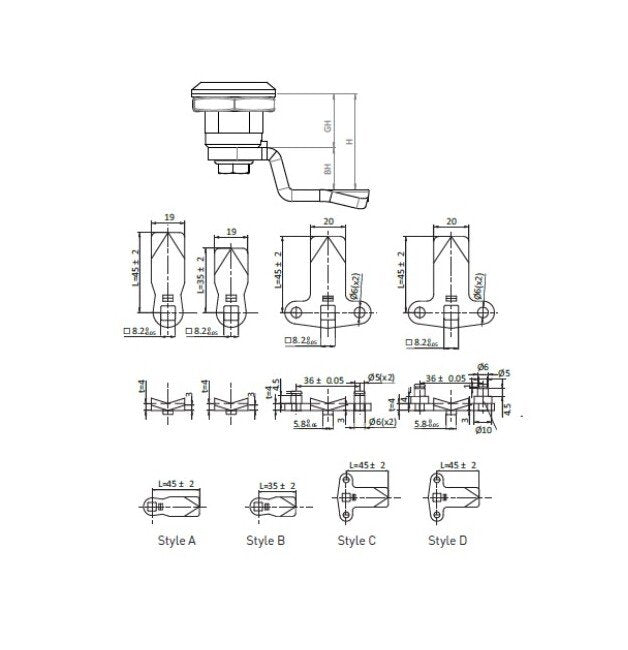

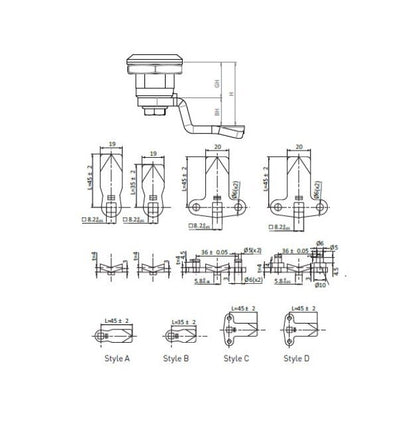

The 16 Dimension H Standard Quarter Turn Cam in Style D features mild steel construction with a durable zinc-plated surface finish. Designed with 3mm ramps and BH value of -2, this cam includes a built-in stop for quarter turns lacking internal restraints. GH height equals the sum of GH and BH, ensuring reliable locking mechanisms. Stainless steel option available upon request for enhanced corrosion resistance.
Product Specifications
Specifications Bh
-2
Specifications Dimension H At Gh18 Standard
16
Specifications Dimension H At Gh30
28
Specifications Dimension H At Gh36
34
Specifications Dimension H At Gh40
38
Specifications Dimension H At Gh50
48
Specifications Dimension H At Gh60
58
Specifications Material
Mild Steel
Specifications Note
Stainless Steel available on request.
Specifications Style
D
Specifications Surface Finish
Zinc Plated
