16 Inch Fabricated Tee Type Strainer
16 Inch Fabricated Tee Type Strainer
SKU:TEM-f14bc2
Custom 16 in Fabricated Tee Type Strainer for efficient pipeline particle removal and equipment protection. ASME standards compliant with ISO 9001:2008 certification.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
16 Inch Fabricated Tee Type Strainer
$599.99
Quantity: 1
Claim Your Seller Account
16 Inch Fabricated Tee Type Strainer
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

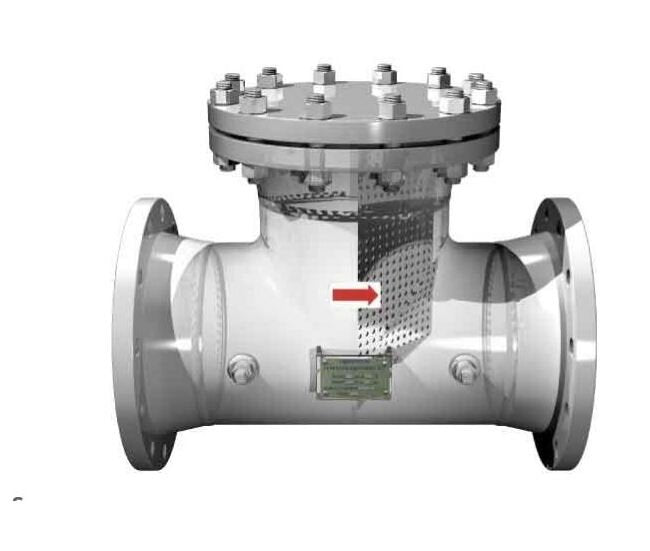

The 16 Inch Fabricated Tee Type Strainer by Sure Flow is a custom-designed strainer crafted to efficiently remove pipeline particles, safeguarding pumps, valves, and equipment. Constructed from carbon or stainless steel, this strainer can be tailored to meet specific requirements, offering optional materials, end connections, and accessories. With dimensions meeting ASME standards and certification under ISO 9001:2008, this strainer ensures optimal performance and quality in industrial applications.
Product Specifications
Additional Information Additional Information
When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

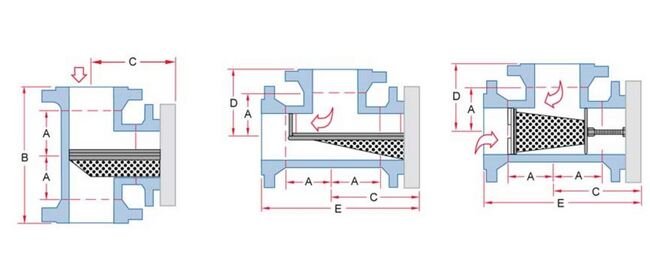

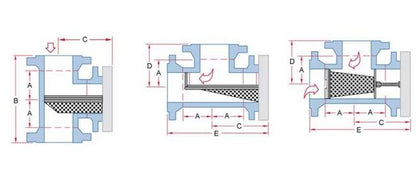

Dimensions Dimension A
12 in
Dimensions Dimension B For American Society Of Mechanical Engine
49 in
Dimensions Dimension C For American Society Of Mechanical Engine
30 5/8 in
Dimensions Dimension D For American Society Of Mechanical Engine
24 1/2 in
Dimensions Dimension E For American Society Of Mechanical Engine
55 1/8 in
Dimensions Pipe Size
16 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
