16-Inch Strap Hinge for Heavy-Duty Applications
16-Inch Strap Hinge for Heavy-Duty Applications
SKU:HIN-db1786
Durable 16" Strap Hinge designed for heavy-duty applications, crafted from 8 Ga. steel with zinc-plated finish. Suitable for indoor/outdoor use. Ideal for industrial, commercial, and institutional settings.
Regular price
$21.95
Regular price
Sale price
$21.95
Unit price
per
Initiate Order
16-Inch Strap Hinge for Heavy-Duty Applications
$21.95
Quantity: 1
Claim Your Seller Account
16-Inch Strap Hinge for Heavy-Duty Applications
$21.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

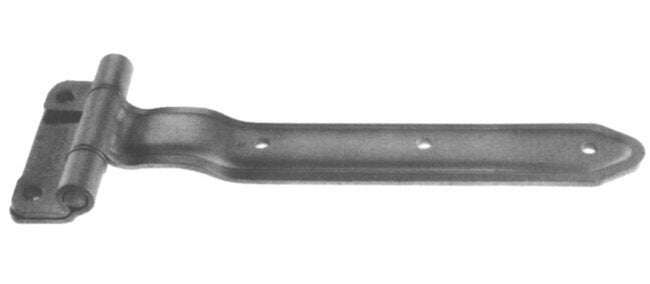

The 16" Strap Hinge from the Narrow Bracket Over The Seal Hinges line is designed for heavy-duty applications, offering exceptional strength and durability. Crafted from 8 Ga. steel with a zinc-plated finish, this hinge ensures superior corrosion resistance, making it suitable for both indoor and outdoor use. The 1/2" Dia. steel pin and 5 5/8" mounting hole spacing provide secure and stable installation. With a weight of 2.50 lb, this hinge can support heavy doors or gates with ease, making it an ideal choice for industrial, commercial, and institutional settings.

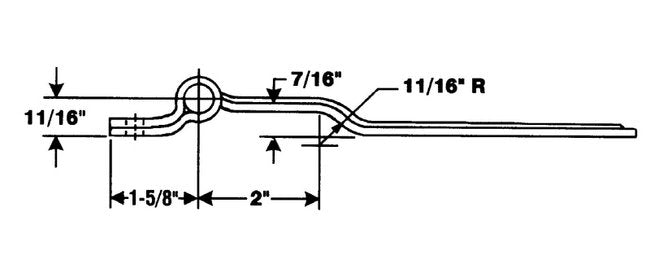

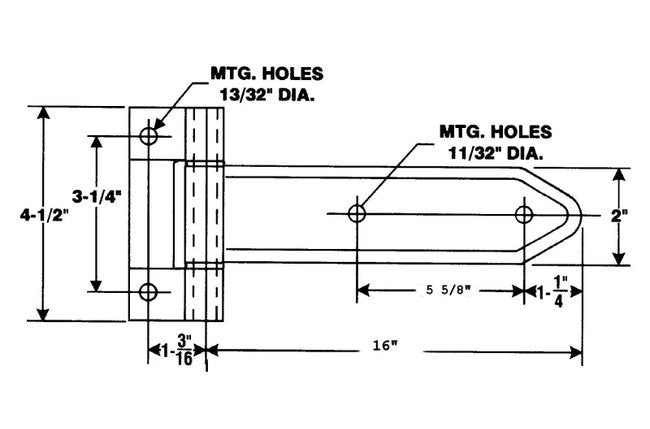

Product Specifications
Specifications Bracket
8 Ga. x 4 1/2" x 1 5/8" from center of pin.
Specifications Finish
Steel Zinc plated.
Specifications List Price
21.95 USD
Specifications Mounting Holes On Strap C To C
5 5/8"
Specifications Pin
1/2" Dia. steel.
Specifications Strap
8 Ga. x 2" x 16"
Specifications Weight
2.50 lb
