16-Inch Strap Narrow Bracket Hinge

Name: 16-Inch Strap Narrow Bracket Hinge
Brand: Orr & Orr, Inc.
SKU: HIN-0680f8
Price: 19.99 USD
Availability: OutOfStock

SKU:HIN-0680f8

Durable 16" Strap Hinge with 8 Ga. Steel, 1/2" Pin, Zinc Finish. Suitable for Side & Rear Doors.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

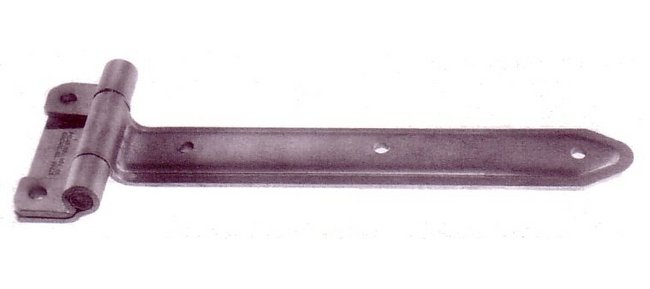

The 16-Inch Strap Narrow Bracket Hinge is a durable and reliable solution designed for side and rear doors. Constructed with high-quality materials, this hinge features an 8 Ga. steel strap measuring 2" x 16", a 1/2" Dia. steel pin, and a zinc-plated finish for enhanced longevity. With a weight of 2 1/2 lbs, it offers sturdy support and smooth operation. Ideal for both consumer and institutional use, this hinge is available in aluminum or stainless steel, meeting stringent industry standards for quality and performance.

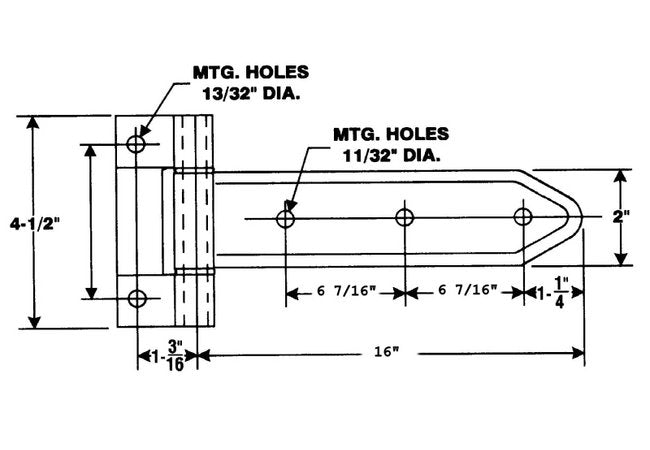

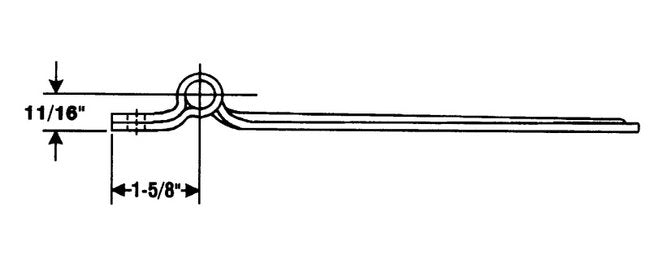

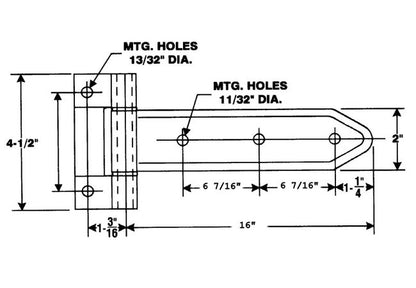

Product Specifications

Specifications Bracket

8 Ga. x 4 1/2" x 1 5/8" from center of pin.

Specifications Finish

Steel - Zinc plated

Specifications List Price

21.50 USD

Specifications Mounting Holes On Strap C To C

6 7/16"

Specifications Pin

1/2" Dia. Steel

Specifications Strap

8 Ga. x 2" x 16"

Specifications Weight

2 1/2 lb
