16 Series Miniature Support Post
16 Series Miniature Support Post
SKU:01C-f6a086
Securely mount circuit boards with ease using the 16 Series Miniature Support Post. Durable, easy installation, and RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
16 Series Miniature Support Post
$24.99
Quantity: 1
Claim Your Seller Account
16 Series Miniature Support Post
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 16 Series Miniature Support Post is a versatile solution for securely mounting circuit boards in chassis systems. This post features a snap-fit design for easy installation and maintenance, locking securely into the chassis. Made from durable Nylon 66 material, this support post is UL94V-2 rated and RoHS compliant, ensuring safety and environmental responsibility. With a temperature range of -40 to 185F (-40 to 85C), this support post is suitable for a variety of applications.
Product Specifications

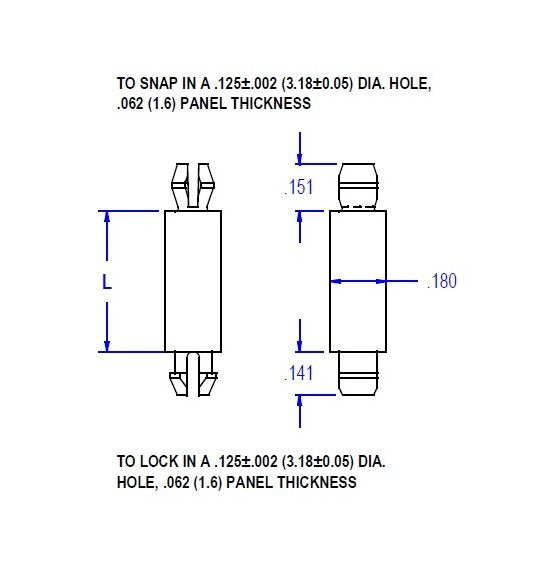

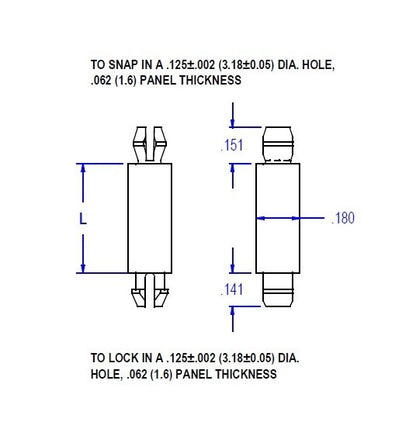

Specifications Dim L
.250 (6.4) inches (mm)
