16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
SKU:01C-3d0f62
Miniature support post for circuit board with .125 board hole x .125 chassis hole, nylon material, RoHS compliant, ASTM standards, -40 to 185F temp range.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
$14.99
Quantity: 1
Claim Your Seller Account
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 16 Series Miniature Support Post is a versatile solution designed for precision circuit board support. Engineered to fit neatly into PCBs and securely lock into chassis, this support post offers easy installation by hand and can be released for repairs without hassle. Made from durable Nylon 66 UL94V-2 material, this product meets ASTM D 4066 and PA0113 standards, ensuring reliability and safety. RoHS compliant and capable of withstanding temperatures ranging from -40 to 185F (-40 to 85C), the 16 Series Support Post is ideal for various applications where stability and quality are paramount.

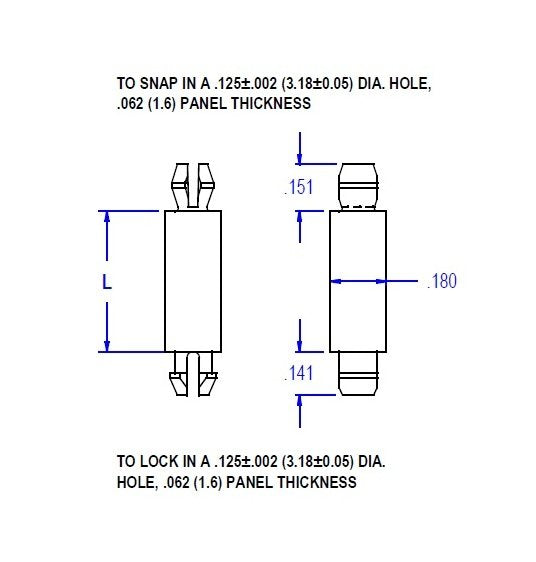

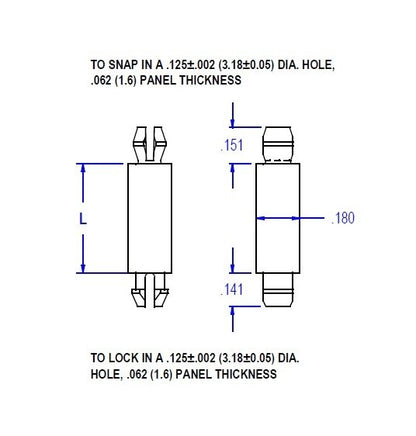

Product Specifications
Specifications Dim L
1.375 (34.9) inches (mm)
