16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
SKU:01C-b36f0a
Versatile 16 Series Miniature Support Post with .125 Board Hole x .125 Chassis Hole for secure installations. Pack of 1000, Nylon 66 material, UL-listed, RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
$59.99
Quantity: 1
Claim Your Seller Account
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

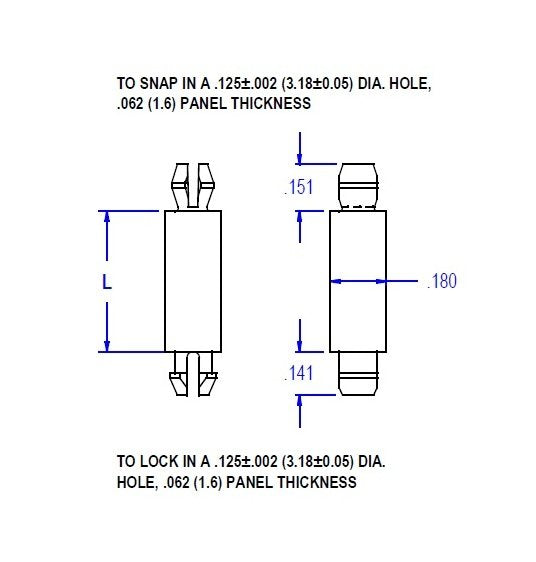

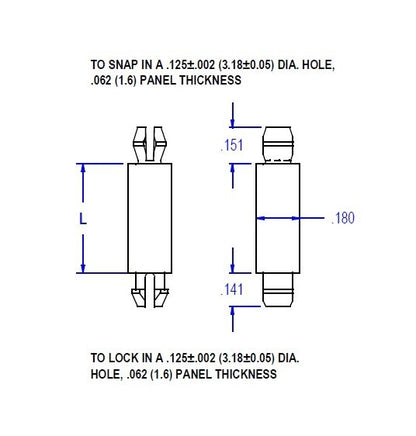

The 16 Series Miniature Support Post is a versatile solution for circuit board supports. Designed with a .125 Board Hole and .125 Chassis Hole, this support post snaps easily into the PCB and securely locks into the chassis for reliable installation. Crafted from high-quality Nylon 66 UL94V-2 material, this post is UL-listed (File No. E70062) and complies with ASTM D 4066, PA0113 and RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), it offers durability and stability for various applications. Each pack contains 1000 posts, making it ideal for repairs and large projects.
Product Specifications
Specifications Dim L
1.00 (25.4) inches (mm)
