16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
SKU:01C-fd4023
Securely mount and easily repair with 16 Series Miniature Support Post. RoHS compliant, durable Nylon 66 material.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
16 Series Miniature Support Post - .125 Board Hole x .125 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

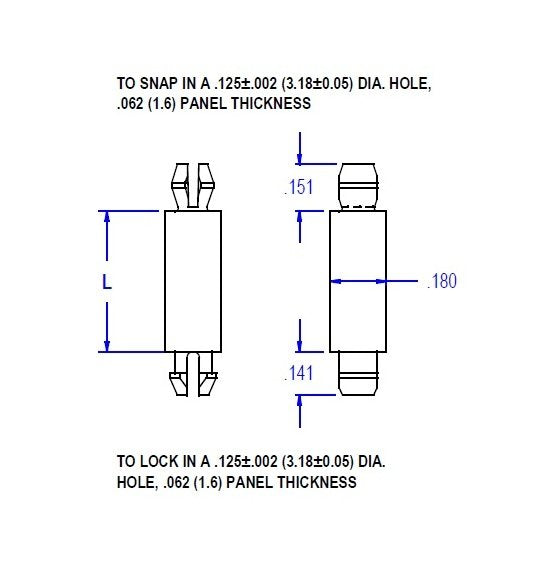

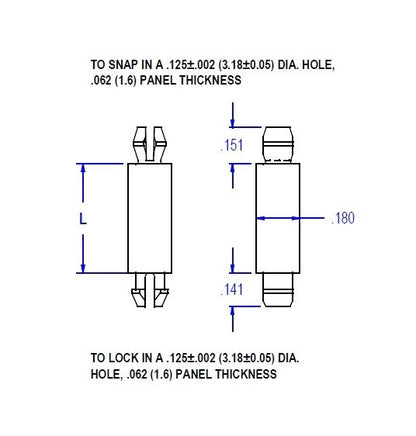

The 16 Series Miniature Support Post is designed for secure mounting in both circuit boards and chassis. With a Snap-Fit feature, it ensures easy installation by hand and can be easily released for repairs. This product, made from Nylon 66 UL94V-2 material, meets ASTM D 4066 and PA0113 standards, along with RoHS compliance. It offers a temperature range of -40 to 185F (-40 to 85C), making it suitable for a wide range of applications where reliability and durability are essential.
Product Specifications
Specifications Dim L
.500 (12.7) inches (mm)
