16 Series Miniature Support Post for Circuit Boards and Chassis
16 Series Miniature Support Post for Circuit Boards and Chassis
SKU:01C-5c0d73
Effortlessly fit and secure circuit boards and chassis with the 16 Series Support Post. Durable Nylon 66 construction. RoHS compliant, temp range -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16 Series Miniature Support Post for Circuit Boards and Chassis
$29.99
Quantity: 1
Claim Your Seller Account
16 Series Miniature Support Post for Circuit Boards and Chassis
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 16 Series Miniature Support Post is designed to effortlessly fit into PCBs and lock securely into chassis, ensuring stability and easy installation by hand. Ideal for quick repairs, this support post is made of durable Nylon 66 UL94V-2 material, meeting ASTM D4066 and PA0113 standards. RoHS compliant and capable of withstanding temperatures ranging from -40 to 185F (-40 to 85C), this support post offers reliability and longevity in various applications.
Product Specifications

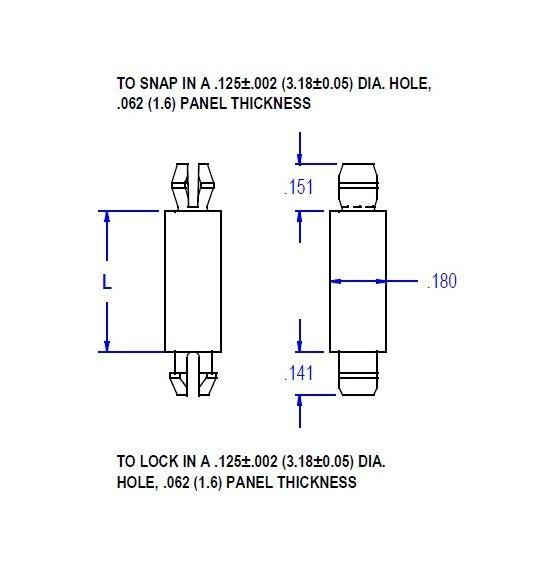

Specifications Dim L
1.125 (28.6) inches (mm)
