16 Series Miniature Support Post for PCB and Chassis - .125" Board Hole x .125" Chassis Hole
16 Series Miniature Support Post for PCB and Chassis - .125" Board Hole x .125" Chassis Hole
SKU:01C-82b47e
Securely install 16 Series Miniature Support Post in circuit boards and chassis. Easy to install and repair. Durable Nylon 66 construction. ASTM and RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16 Series Miniature Support Post for PCB and Chassis - .125" Board Hole x .125" Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
16 Series Miniature Support Post for PCB and Chassis - .125" Board Hole x .125" Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 16 Series Miniature Support Post is designed for secure installation in circuit boards and chassis, offering a reliable solution for various applications. This support post features a Snap Fit design that simplifies installation by hand and allows for easy release during repairs. Made from durable Nylon 66 material with UL94V-2 certification, this post ensures safety and reliability. With ASTM and RoHS compliance, and a temperature range of -40 to 185°F (-40 to 85°C), this support post is suitable for a wide range of environments.
Product Specifications

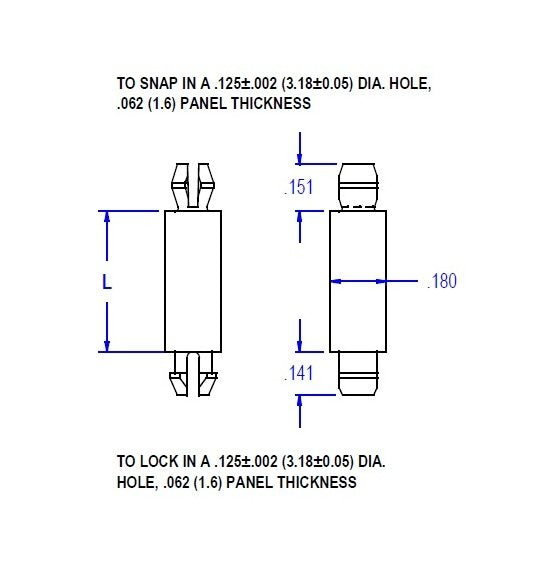

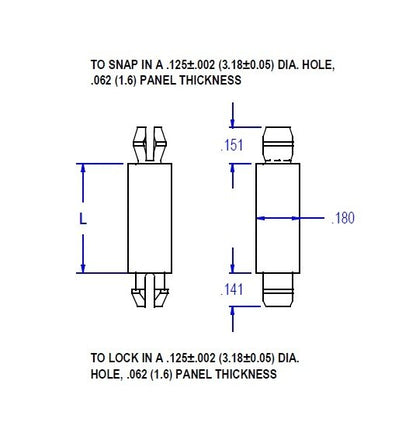

Specifications Dim L
.937 (23.8) inches (mm)
