16-Series Miniature Support Post - Nylon PCB/Chassis Hole Supports
16-Series Miniature Support Post - Nylon PCB/Chassis Hole Supports
SKU:01C-8da3cb
Secure and versatile miniature support post with .125 board & chassis holes, RoHS compliant, ASTM standards met
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
16-Series Miniature Support Post - Nylon PCB/Chassis Hole Supports
$24.99
Quantity: 1
Claim Your Seller Account
16-Series Miniature Support Post - Nylon PCB/Chassis Hole Supports
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 16-Series Miniature Support Post is designed for precise PCB and chassis installations. Crafted from Nylon 66 UL94V-2 material, this support post offers a secure fit with a .125 board hole and .125 chassis hole dimensions. Its snap-fit design ensures easy installation by hand and allows for quick release for repairs. Meeting ASTM D4066 and PA0113 standards, this support post is RoHS compliant and operates within a temperature range of -40 to 185F (-40 to 85C), making it ideal for a wide range of industrial applications.

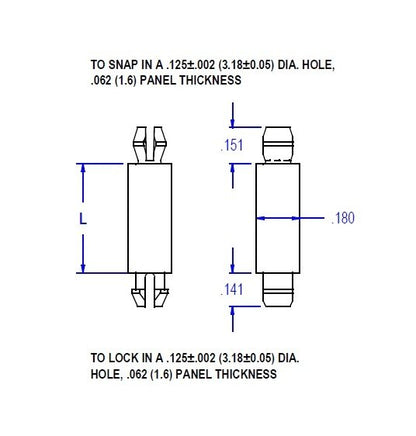

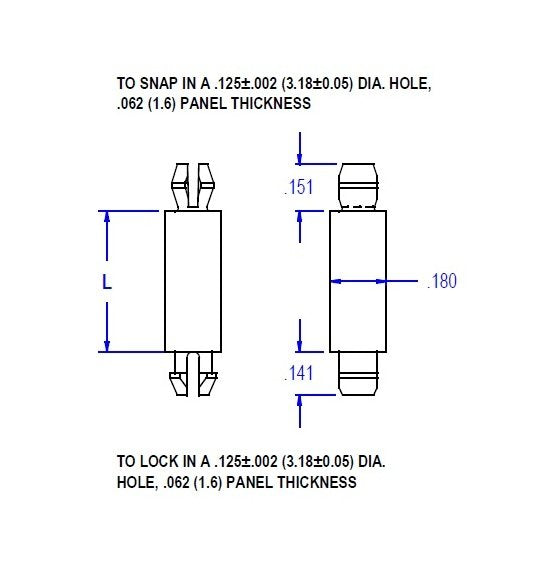

Product Specifications
Specifications Dim L
.563 (14.3) inches (mm)
