16 Series Support Post for Circuit Boards and Chassis - .125 Board Hole x .125 Chassis Hole
16 Series Support Post for Circuit Boards and Chassis - .125 Board Hole x .125 Chassis Hole
SKU:01C-e21ad9
16 Series Support Post for Circuit Boards and Chassis. Miniature design, easy installation, and repairable. Nylon 66 UL94V-2 material. RoHS compliant, -40 to 185F temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16 Series Support Post for Circuit Boards and Chassis - .125 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
16 Series Support Post for Circuit Boards and Chassis - .125 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

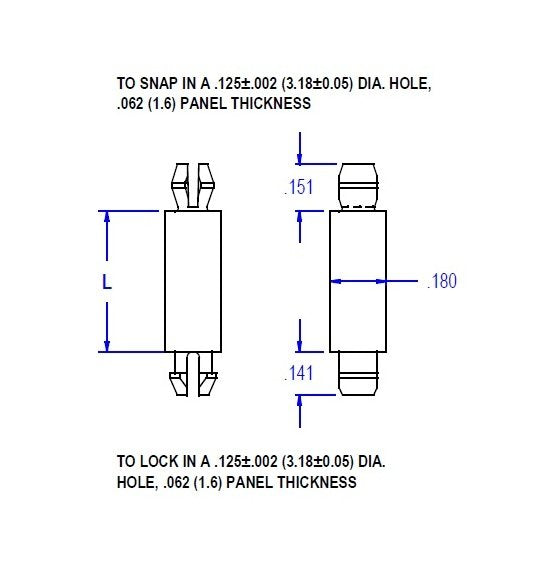

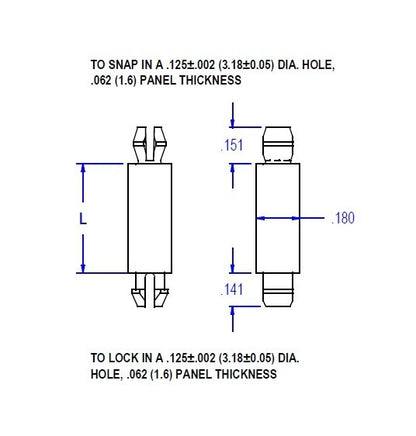

The 16 Series Support Post with .125 Board Hole and .125 Chassis Hole is designed for seamless integration into circuit boards and chassis systems. This miniature post securely snaps into the PCB and locks into the chassis, allowing for easy installation by hand. It is releasable for repairs, providing flexibility and convenience. Made of Nylon 66 UL94V-2 material, this support post meets ASTM D 4066 and PA0113 standards, ensuring reliability and durability. With RoHS compliance and a temperature range of -40 to 185F (-40 to 85C), this support post is ideal for various applications in electronics and industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dim L
.100 (2.54) inches (mm)
