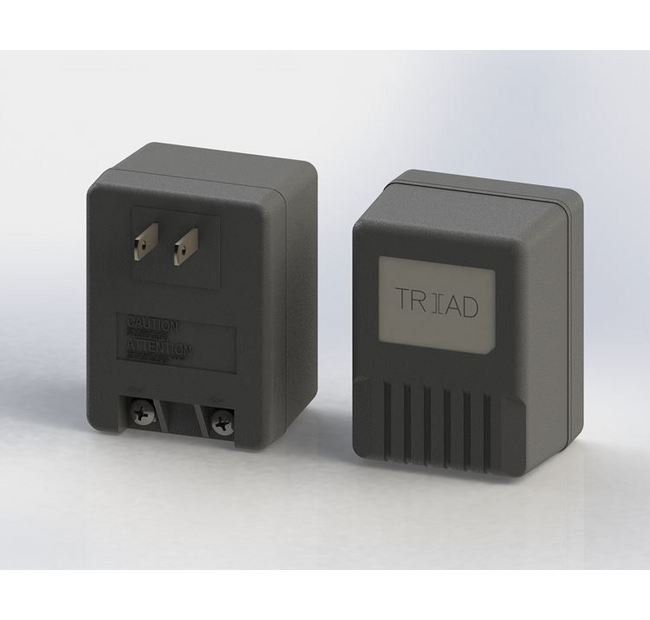

16 VAC 750mA Wall Plug-In Power Supply with Screw Terminals
16 VAC 750mA Wall Plug-In Power Supply with Screw Terminals
SKU:WAL-666231
Versatile 16VAC @ 750mA wall plug-in power supply with Level VI efficiency & screw terminals
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16 VAC 750mA Wall Plug-In Power Supply with Screw Terminals
$29.99
Quantity: 1
Claim Your Seller Account
16 VAC 750mA Wall Plug-In Power Supply with Screw Terminals
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

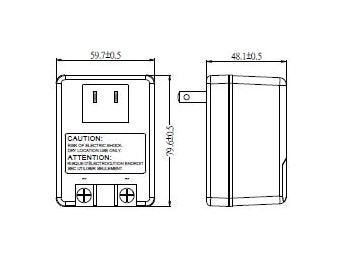

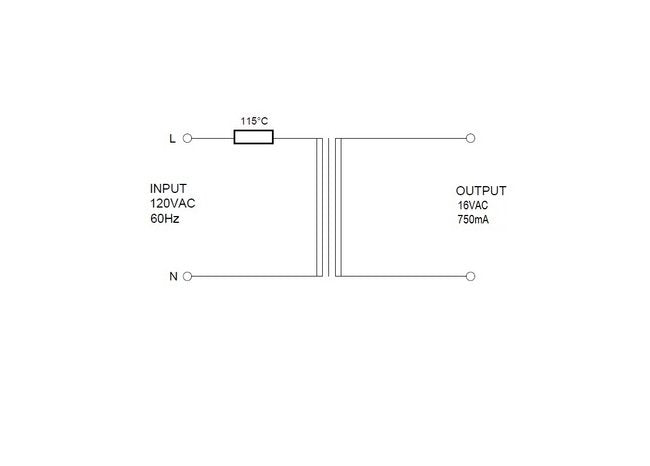

The 16 VAC @ 750mA Wall Plug-In Power Supply is a reliable and efficient external power source suitable for a range of applications. With primary input voltage of 120 VAC and secondary output voltage of 16 V, this power supply offers a tolerance of ± 5% to ensure consistent performance. Measuring 79.6mm in height, 59.7mm in width, and 48.1mm in depth, it features a Class 2 UL rating and Level VI efficiency, making it compliant with stringent industry standards. The thermoplastic molded enclosure ensures durability and safety in use.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %
Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
16 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 20.0 V
Specifications Secondary Output Current Ac
750 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
16 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
