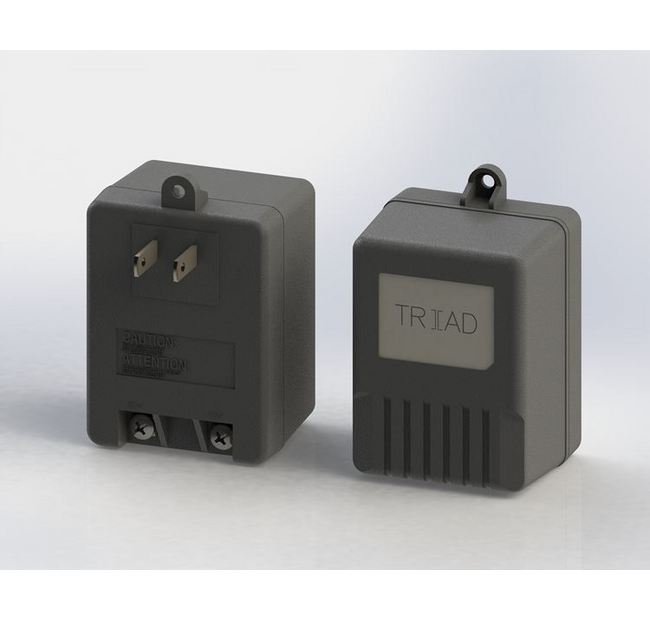

16 VAC Wall Plug-In Power Supply with Screw Terminals & Mounting Tab
16 VAC Wall Plug-In Power Supply with Screw Terminals & Mounting Tab
SKU:WAL-2adebb
Reliable 16 VAC power supply with UL safety certification, screw terminals, and mounting tab for secure installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
16 VAC Wall Plug-In Power Supply with Screw Terminals & Mounting Tab
$24.99
Quantity: 1
Claim Your Seller Account
16 VAC Wall Plug-In Power Supply with Screw Terminals & Mounting Tab
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

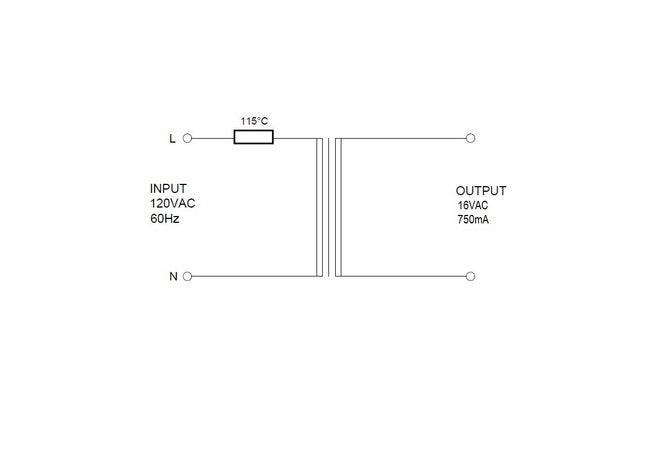

The 16 VAC Wall Plug-In Power Supply is a reliable and efficient solution for providing power to various electronic devices. With a primary input voltage of 120VAC and a secondary output voltage of 16VAC at 750mA, this power supply ensures stable and consistent power delivery. It meets UL safety standards, features screw terminals for secure connections, and a convenient mounting tab for easy installation. Designed for durability and efficiency, this power supply is ideal for both consumer and institutional applications.
Product Specifications
Mechanical Parameters Case Type
Thermoplastic Molded Enclosure
Specifications 2007 Eisa Efficiency
VI
Specifications Average Efficiency
82.96 %

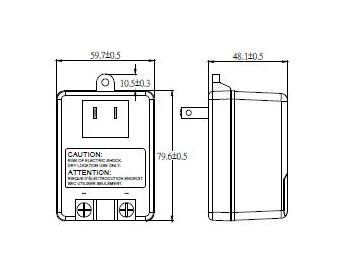

Specifications Depth
48.1 mm
Specifications Height
79.6 mm
Specifications Input Operating Frequency
60 Hz
Specifications Input Plug
North America
Specifications Intended Applications
External Power Source
Specifications Length
59.7 mm
Specifications Maximum Temperature Rise At Rated Load
30 ºC
Specifications Maximum Temperature Rise On Enclosure Surface
45 ºC
Specifications Mounting Configuration
Wall Plug-In
Specifications No Load Power Stand By
⤠0.21 W
Specifications Operating Temperature Range
-10 to +40 ºC
Specifications Output Type
AC
Specifications Output Voltage
16 V
Specifications Power Supply Ul Rating
Class 2
Specifications Primary Excitation Current
< 4 mA
Specifications Primary Input Voltage Ac
120 V
Specifications Secondary No Load Reference Voltage Ac
< 20.0 V
Specifications Secondary Output Current Ac
750 mA
Specifications Secondary Output Voltage Ac At Secondary Rated Cu
16 V
Specifications Stock
No
Specifications Tolerance For Secondary Output Voltage Ac
± 5 %
