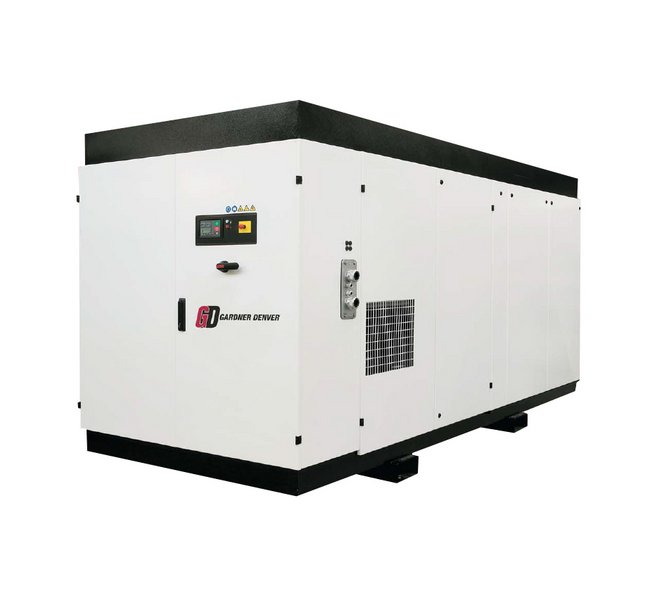

160 kW Oil-Free Screw Air Compressor - Gardner Denver ESN 160-250 Series
160 kW Oil-Free Screw Air Compressor - Gardner Denver ESN 160-250 Series
SKU:NEW-8548c2
Enhance industrial operations with the Gardner Denver 160 kW Oil-Free Screw Air Compressor - ESN 160-250 Series. Reliable, efficient, and compliant with ISO standards.
Regular price
$25,999.99
Regular price
Sale price
$25,999.99
Unit price
per
Initiate Order
160 kW Oil-Free Screw Air Compressor - Gardner Denver ESN 160-250 Series
$25,999.99
Quantity: 1
Claim Your Seller Account
160 kW Oil-Free Screw Air Compressor - Gardner Denver ESN 160-250 Series
$25,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Gardner Denver ESN 160-250 Series 160 kW Oil-Free Screw Air Compressor delivers unparalleled reliability and efficiency for demanding industrial applications. With maximum capacity ranging from 24.9 to 43.4 m³/min and advanced features like efficient oil separation, versatile heat recovery, and heavy-duty construction, this compressor ensures continuous 24/7 operation with minimal energy consumption. Designed to meet ISO 1217 and ISO 9001:2008 standards, the ESN series offers a compact size for easy installation and maintenance, making it the preferred choice for industries requiring top-notch performance.
Product Specifications
Additional Information
As all Gardner Denver™'s compressors, the ESN 160-250 series has rapidly become a popular choice for a wide range of demanding industrial applications. The compressor carries all Gardner Denver™ features and benefits associated with reliable and easy use and operation, and high efficiency. The ESN 160-250 series is specifically built to meet the demands of continuous 24/7 operating demands and absolute uptime. The ESN 160-250 covers capacities ranging from 29.0 to 43.4 m³/min at normal operating pressures from 7 to 13 bar. We offer low pressure models down to 3 bar.
Auxiliary Equipment
MultiPilot multi-compressor controller for several compressorsAir dryersCompressed air after treatment line
Built For 247 Use In Demanding Applications
Gardner Denver™ designed the ESN 160-250 series compressors for continuous operation and for applications that require absolute reliability and performance efficiency.Gardner Denver™'s ESN compressors are being used in a wide range of industries:In North and Central Europe, and other regions, leading papermakers use Gardner Denver™ compressors to supply compressed air for their critical processes, enabling them to produce millions of tons of paper and board annually.Many ski resorts from Europe to Australia have chosen our compressors due to their proven reliability in harsh conditions.Gardner Denver™ ESN compressors are also used by the glass and steel industries, assembly plants and for other demanding applications.
Designed For Maximum Efficiency And Reliability Advanced Compres

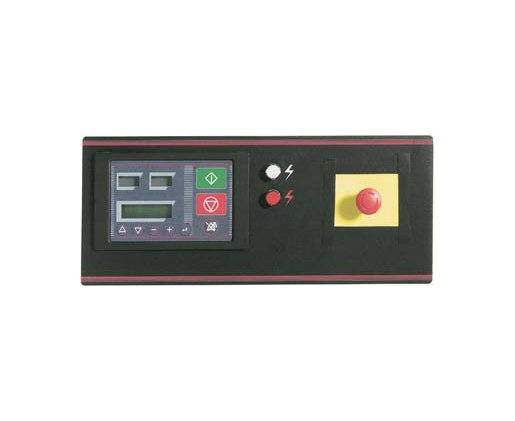

The advantages of DigiPilot controlDigiPilot compressor control ensures accurate and reliable control. DigiPilot's sophisticated microprocessor facilitates efficient operation and pressure control through its simple user-interface and interactive instrument panel. Warning lights indicate when the air inlet filters, oil separation elements or cooling system require service operations. On the oil filter there is a separate visual indicator. These enable proactive service planning.Full load/off load control with automatic start/stopRemote control optionEasy to adapt into a multi-compressor systemMulti-lingual user interface
Designed For Maximum Efficiency And Reliability Efficient Oil Se

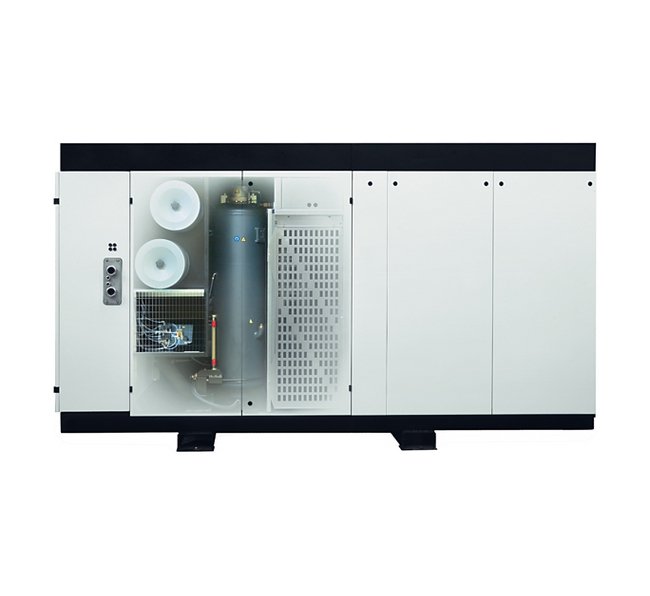

For years Gardner Denver™ has set the standards in oil separation efficiency for clean air. The innovative oil separation system of the ESN 160-250, developed by Gardner Denver™, is based on a multi-stage process of highly efficient cyclone separation followed by oil separator elements. The system offers superior separation efficiency with residual oil content as low as 2 mg/m³ in aerosol.The multi-element system is less prone to premature failuresIn-to-out-flow results in lower air flow velocity for final separationIt offers higher surface area for better separationCompact size single elements are easy to handle and service
Designed For Maximum Efficiency And Reliability Enduro Screw Com

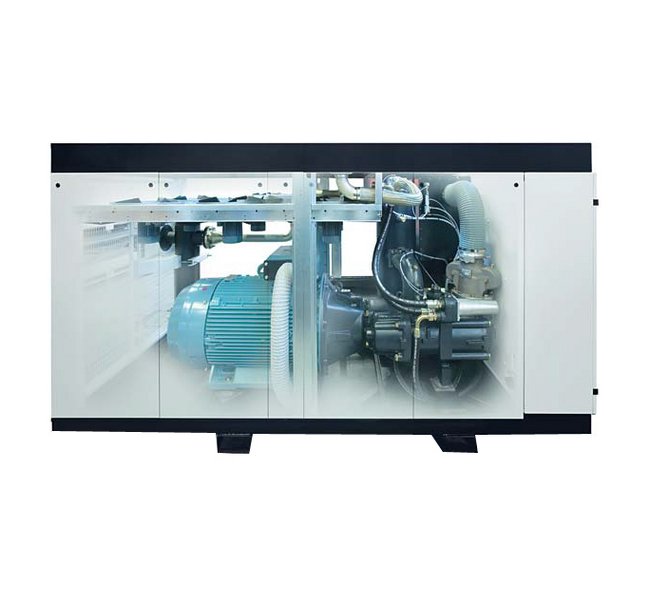

The ESN 160-250 features a new and revolutionary screw element: an ENDURO® air end that improves efficiency, maximizes reliability, saves energy and reduces wear and tear by operating at ideal RPMs with minimum losses. The unit's all-new air end layout with suction and discharge ports on the top side makes the compressor package easy to service with open access interior. The new ENDURO® air end is available as a direct or gear driven version, depending on the pressure and power required. In addition to generally improved performance, an extra 0.5 - 3% benefit in performance is gained by placing the gear in the discharge end of the air end.
Designed For Maximum Efficiency And Reliability Heavy Duty Const
The ESN 160-250 compressors are designed using advanced technology to meet the highest quality standards that customers are accustomed to expect from Gardner Denver. The ESN 160-250 compressor series is an efficient and versatile solution even for the most demanding industrial applications.Each ENDURO® screw compressor element is carefully tested for performance and qualityEach ESN 160-250 compressor is rigorously tested in simulated real life conditionsAll components meet the applicable international standards and requirements
Note
For additional information please contact your local representative.
Optional Extras
Water-cooled unitsHeat recovery systemsLow pressure models (down to 3 bar)Special voltagesInlet valve modulating control
Specifications Industry Standardscertifications
ISO 1217 | ISO 9001:2008
Specifications Series
ESN
Standard Equipment
Air inlet filtersFully automatic capacity control: full load, unload, start/stopDigiPilot microprocessor controller: interactive instrument panel with multilanguage information systemY/D starterMain switchTEFC electric motors: IP55, F-class insulation, thermistor protectionMulti-stage oil separation vesselAir-cooled, radiator type, combined air after and oil coolersEmergency stopSafety devices for:Main motor overloadFan motors overloadHigh compressor temperatureHigh compressor pressureHigh network air temperatureHigh network pressureAlarms for:Oil changeInlet filtersOil separator elementsHour meter:Loaded hoursUnload hoursWeek clockReal time faulty logAvailability for pressure scheduleRemote controlRS-485 communication lineReadiness for external controllersAutomatic re-start after power failureRunning condition indicators:PressureTemperatureLoad/unload/standby/offPressure relief valveSound absorbing enclosureWater separatorAutomatic water drainENDURO® Air end
Technical Data Maximum Capacity At 10 Bar Maximum Pressure
24.90 m³/min | 879 ft³/min
Technical Data Maximum Capacity At 13 Bar Maximum Pressure
21.1 m³/min | 745 ft³/min
Technical Data Maximum Capacity At 75 Bar Maximum Pressure
29.00 m³/min | 1024 ft³/min
Technical Data Maximum Capacity At 85 Bar Maximum Pressure
27.20 m³/min | 961 ft³/min
Technical Data Maximum Pressure
7.5 bar | 8.5 bar | 10 bar | 13 bar | 110 psig | 125 psig | 145 psig | 190 psig
Technical Data Motor Power At 50 Hz Frequency
160 kW | 215 hp
Technical Data Motor Power Frequency
50 Hz
Technical Data Net Weight
4100 kg
Technical Data Note For Maximum Capacity
Capacity measured in accordance with ISO 1217, Annex C using the following working pressures-7.5 bar models at 7 bar, 8.5 bar models at 8 bar, 10 bar models at 9 bar and 13 bar models at 12 bar.
Technical Data Output Flange
DN 100
The Advantages Of Versatile Heat Recovery Versatile Heat Recover
Gardner Denver™ utilizes heat recovery systems to maximize efficiency by recovering energy generated during compressed air production.More than 90% of all energy used can be recovered and utilizedThermostatic control maintains desired temperature in the compressorHeat exchangers are available in different materials for harsh conditionsCooling water circuit can be designed to meet specific customer needsGardner Denver™ offers a wide range of heat recovery systems for your applications:EANAStandard air-cooled compressor with a combined air/after/oil coolerAll ducts required for efficient heat recovery and utilization are easy to arrangeCooling air outlet directed upwardsEWNAGardner Denver™'s standard water-cooling systemAfter cooler and oil cooler connected in series as standardCoolers: indissoluble plate heat exchangers, acid proof steel with copper seams. Good self-cleaning ability.The PRE systemDesigned for water-cooled compressorsCooling water is initially directed through the aftercooler and then absorbs thermal energy from a large oil/water heat exchangerTypical water inlet temperature: 15 - 35 ºCTypical water outlet temperature: 65 - 75 ºCThe DIR systemIdeal for closed systems with inlet water temperatures up to +50 ºCSeparate water-cooling supply is required for the after-coolerThe +W systemHeat recovery system for air-cooled compressorsTransforms the heat produced during compression into waterMaximum outlet temperature: +75 ºC (standard 70 ºC)Also ideal for future installation
The Heavyweight Winner Advanced Digipilot User Interface
Real time operation monitoringAccurate and easy-to-use settingsInformative service timersFlexible/multiple capability for external communication, monitoring and control
The Heavyweight Winner Benefits That Weigh
Heavy-duty construction for highest reliabilityEfficient oil separation for clean airAll new layout for easy access and fast serviceCompact size to minimize the installation cost
The Heavyweight Winner Easy Installation

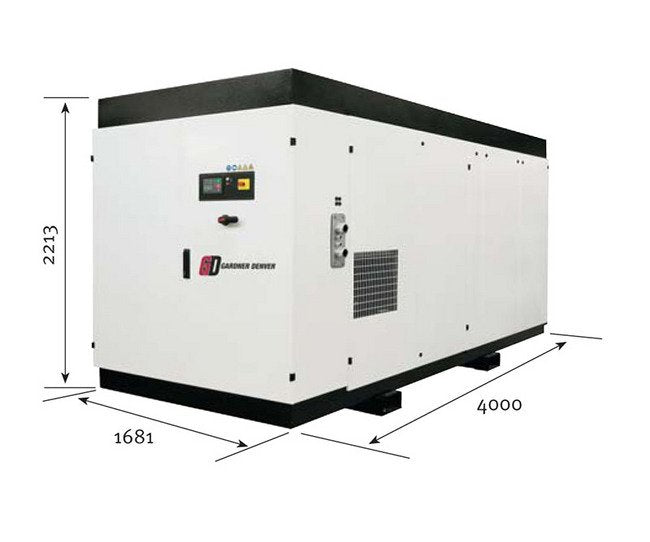

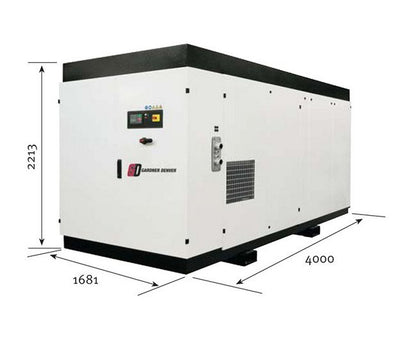

The ESN 160-250 saves you money from the very beginning-starting with transportation to your site. The unit is transportable on normal trucks and also fits inside a container - no need for special freight arrangements or expensive crating. The unit's compact size allows you to move it through standard industrial double doors. Its small footprint minimizes the floor plan usage allowing you to maximize the production space. The ESN 160-250 compressors require no special foundation. Ducting is easy to arrange.
The Heavyweight Winner Fast Maintenance
The ESN 160-250 compressors are the easiest to service in the industry. The unit's revolutionary air end design enables an all-new package layout. This, together with large access doors with no special tool requirement, makes service fast minimizing downtime.
The Heavyweight Winner Low Energy Consumption
Gardner Denver™ strives to maintain high performance levels in the ESN series while minimizing energy usage through:A new generation ENDURO® air end with high efficiency and maximum endurancePremium efficiency electric motorsAn accurate, sophisticated and versatile DigiPilot control systemVersatile heat recovery options
The Heavyweight Winner Low Noise Construction
Sophisticated package layout and large and slow turning air end reduce the compressor noise level compared to conventional designs. The unit's standard enclosure provides a max noise level of only 79 dB(A), that in the 160 kW's model and even in the extreme conditions.
