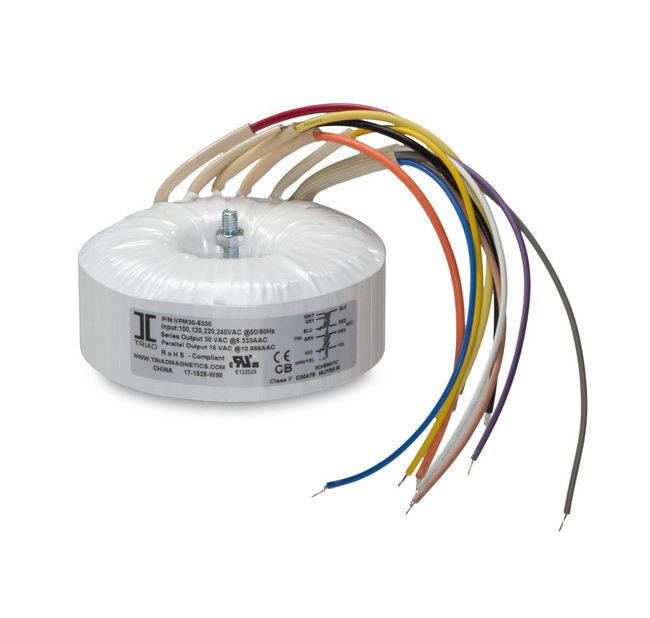

160 VA Toroidal Medical Power Transformer
160 VA Toroidal Medical Power Transformer
SKU:POW-f26430
High-quality 160 VA Toroidal Medical Power Transformer for precise power regulation in medical equipment applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
160 VA Toroidal Medical Power Transformer
$149.99
Quantity: 1
Claim Your Seller Account
160 VA Toroidal Medical Power Transformer
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 160 VA Power VPM Series Toroidal Medical Transformer is a high-quality power solution designed for medical equipment. With primary voltage options of 100V, 120V, 220V, or 240V, and a dual secondary configuration for parallel or series connection, this transformer ensures efficient power regulation with a typical regulation of 7.5% and a low temperature rise of 50°C. Meeting Class F insulation standards and providing 4kV dielectric isolation, it guarantees low leakage current and stray fields, making it ideal for medical applications. This transformer is CE and CRU®US certified, ensuring compliance with industry standards.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
160 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
12 V | 24 V
Specifications Outside Diameter
113 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
160 V·A
Specifications Secondary Voltage In Parallel
12 V at 13.34 A
Specifications Secondary Voltage In Series
24 V CT at 6.67 A
Specifications Regulation
7.5 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.8 kg
