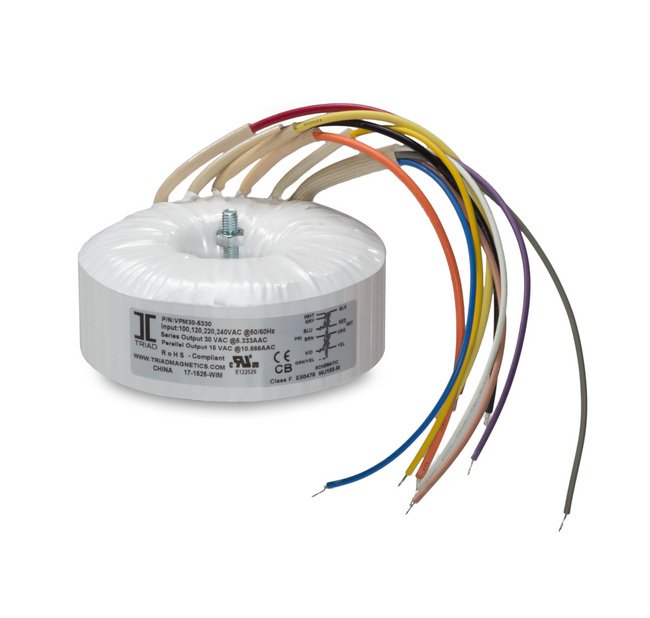

160 VA Toroidal Medical Transformer
160 VA Toroidal Medical Transformer
SKU:POW-9a34ef
High-performance 160 VA Toroidal Medical Transformer with Class F insulation, dual secondary connections, and industry-standard compliance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
160 VA Toroidal Medical Transformer
$89.99
Quantity: 1
Claim Your Seller Account
160 VA Toroidal Medical Transformer
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 160 VA Toroidal Medical Transformer from the VPM Series is a reliable power solution designed for medical applications. With primary voltage options of 100, 120, 220, or 240 VAC and dual secondary connections for parallel or series setups, this transformer ensures low leakage current and stray fields. It features Class F insulation, dielectric isolation of 4 kV, and meets industry standards like CE and CRU®US, making it a dependable choice for medical equipment.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
160 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
18 V | 36 V
Specifications Outside Diameter
113 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
160 V·A
Specifications Secondary Voltage In Parallel
18 V at 8.88 A
Specifications Secondary Voltage In Series
36 V CT at 4.44 A
Specifications Regulation
7.1 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.9 kg
