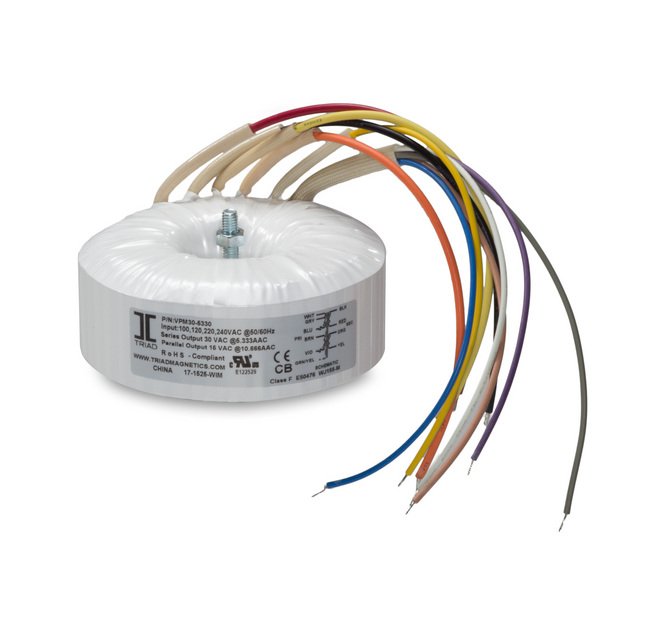

160 VA Toroidal Medical Transformer
160 VA Toroidal Medical Transformer
SKU:POW-de9f59
Reliable 160 VA Toroidal Medical Transformer for precise power conversion in medical settings. Dual secondary voltages, low leakage current, and safety compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
160 VA Toroidal Medical Transformer
$129.99
Quantity: 1
Claim Your Seller Account
160 VA Toroidal Medical Transformer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 160 VA Toroidal Medical Transformer from the VPM Series ensures reliable power conversion with primary voltage options of 100V, 120V, 220V, or 240V at 50/60Hz. Featuring dual secondary voltages for parallel or series connection, this transformer boasts low leakage current, low stray fields, and an insulation class of F for optimal safety. With a dielectric isolation of 4KV for 60 seconds, this transformer meets industry standards such as CE and CRU®US, making it ideal for medical applications.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
160 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
120 V | 240 V
Specifications Outside Diameter
113 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
160 V·A
Specifications Secondary Voltage In Parallel
120 V at 1.33 A
Specifications Secondary Voltage In Series
240 V CT at 0.67 A
Specifications Regulation
7.4 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.8 kg
