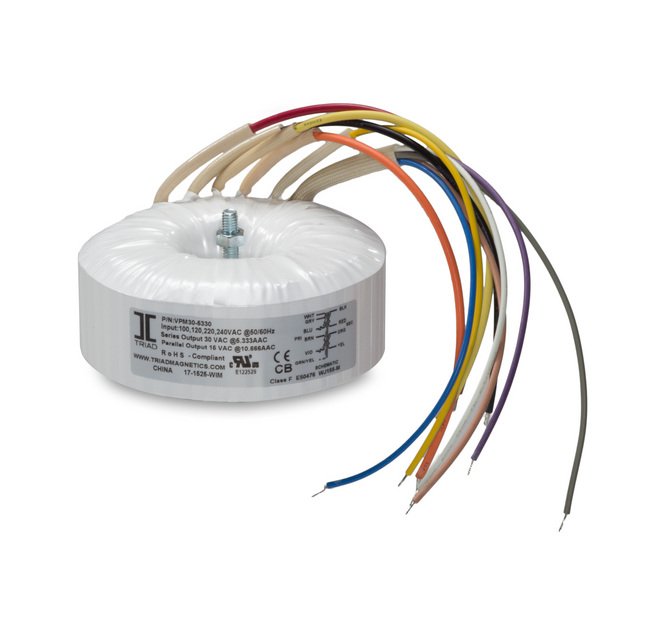

160VA Toroidal Medical Power Transformer
160VA Toroidal Medical Power Transformer
SKU:POW-9a3a9b
Reliable 160VA Toroidal Medical Power Transformer with Class F insulation, dual voltage options, and CE/CRU®US compliance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
160VA Toroidal Medical Power Transformer
$149.99
Quantity: 1
Claim Your Seller Account
160VA Toroidal Medical Power Transformer
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 160VA Toroidal Medical Power Transformer from the VPM Series is a reliable solution for medical equipment applications. With primary voltage options of 100, 120, 220, or 240 VAC and dual secondary voltage configurations for parallel or series connections, this transformer ensures efficient power distribution. Featuring Class F insulation, 4KV dielectric isolation, and compliance with CE and CRU®US standards, it guarantees safety and performance. With low leakage current, low stray fields, and RoHS compliance, this transformer offers custom designs and meets the latest industry requirements.
Product Specifications
Note Note
Custom designs available.RoHS Compliance: As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.Upon printing, this document is considered "uncontrolled".
Specifications Connection Type
Leads
Specifications Dielectric Isolation Primary To Secondary For 60
4 kV
Specifications Electrical Rating
160 V·A
Specifications Industry Standards
CE | CRU®US
Specifications Insulation Class
Class F, 155 ºC
Specifications Maximum Height
52 mm
Specifications Nominal Primary Voltage
100 V | 120 V | 220 V | 240 V
Specifications Nominal Secondary Voltage
24 V | 48 V
Specifications Outside Diameter
113 mm
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Safety
Medical
Specifications Secondary Connection Type
Parallel | Series
Specifications Secondary Power Volts X Ampva
160 V·A
Specifications Secondary Voltage In Parallel
24 V at 6.66 A
Specifications Secondary Voltage In Series
48 V CT at 3.33 A
Specifications Regulation
7.5 %
Specifications Temperature Rise
50 ºC
Specifications Weight
1.8 kg
