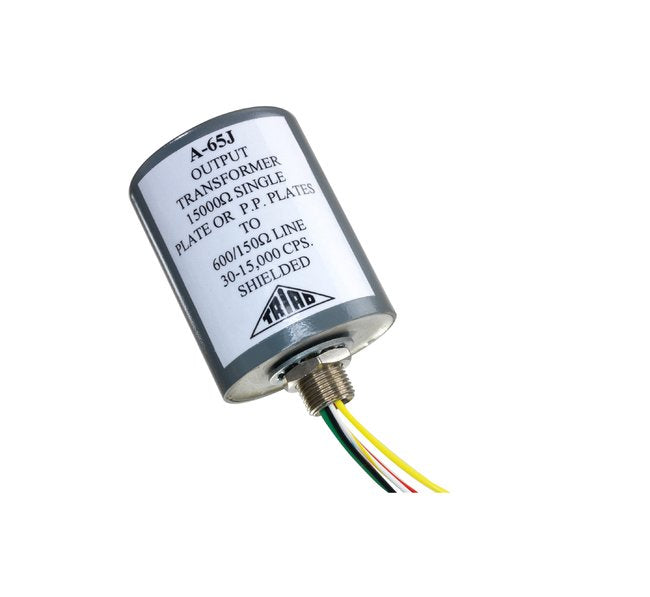

1630 Ohm Primary DC Resistance J Series Audio Transformer
1630 Ohm Primary DC Resistance J Series Audio Transformer
SKU:AUD-3ce769
Enhance amplifier performance with the 1630 Ohm Primary DC Resistance J Series Audio Transformer from Triad. High-fidelity, hum reduction, and wide frequency range for optimal sound quality.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
1630 Ohm Primary DC Resistance J Series Audio Transformer
$59.99
Quantity: 1
Claim Your Seller Account
1630 Ohm Primary DC Resistance J Series Audio Transformer
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1630 Ohm Primary DC Resistance J Series Audio Transformer from the J Series by Triad offers exceptional performance and reliability for amplifiers seeking to exceed broadcast standards while maintaining affordability. With a primary impedance of 15000 Ohm and secondary impedance options of 150 Ohm or 600 Ohm, this transformer ensures optimal sound quality. Featuring a low level high fidelity design with alloy shielding for 40 to 60 dB hum reduction, wide frequency ranges, and flexible leads for easy mounting, this transformer is ideal for single or push-pull plate applications to balanced lines. Additionally, it meets stringent industry standards for static shielding and includes detailed circuit diagrams for seamless installation.
Product Specifications
Applications Applications
Single or Push-Pull (P-P) Plates to Balanced Line
Direct Current Dc Resistance Dc Resistance Primary
1630 Ohm
Direct Current Dc Resistance Dc Resistance Secondary
73 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Max
100 mW
Electrical Specifications At 25 Degree Celsius C Temperature Ove
5:1
Electrical Specifications At 25 Degree Celsius C Temperature Pri
15000 Ohm
Electrical Specifications At 25 Degree Celsius C Temperature Sec
150 Ohm | 600 Ohm
Features Features
Low level high fidelity.Single-hole mounting, allowing rotation for maximum hum reduction. Alloy shielding gives 40 to 60 dB hum reduction. Wide frequency ranges. Flexible leads for ease of mounting. Input units electrostatically and magnetically shielded .Lightweight. Smooth, baked enamel cases, 1-3/8" diameter, 1-3/4" above chassis . Legible circuit diagrams permanently affixed to every case.
Note Note
Static Shield
Specifications Case Dimension D
1-3/8 in
Specifications Case Dimension H
1-3/4 in
Specifications Case Type
J
Specifications Connections
Leads
Specifications Frequency Response At 3 Db
30 to 15000
Specifications Hum Reduction
40 to 60 dB
Specifications Maximum Unit Weight
0.35 lb
Specifications Mounting Hole Diameter
3/8 in
Specifications Rms Test Voltage
500
Specifications Transformer Contact Type
Center Tap
