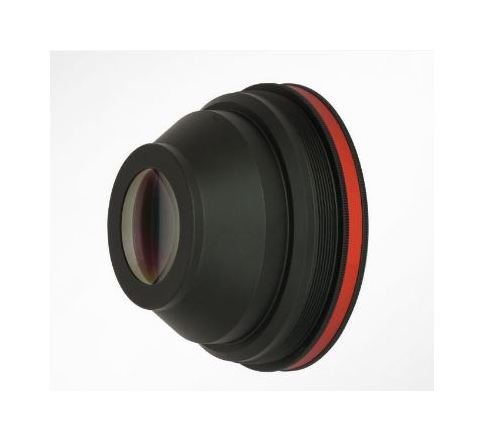

163mm Stock F-Theta Lens for Laser Systems
163mm Stock F-Theta Lens for Laser Systems
SKU:STO-1a8a6b
High-performance Stock F-Theta Lens for precise laser beam focusing. Compatible with 355nm, 532nm, 1064nm wavelengths.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
163mm Stock F-Theta Lens for Laser Systems
$599.99
Quantity: 1
Claim Your Seller Account
163mm Stock F-Theta Lens for Laser Systems
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-090-163 Stock F-Theta Lens is a high-performance optical component designed for laser systems, offering compatibility with wavelengths of 355 nm, 532 nm, and 1064 nm. With an effective focal length of 163 mm and a scanning width of 90*90 mm, this lens delivers exceptional precision and accuracy in laser beam focusing. The telecentric angle range from 4 to 5.6 ensures minimal distortion, making it ideal for industrial applications requiring precise imaging. Additionally, the lens meets rigorous industry standards for quality and performance.
Product Specifications
Specifications Effective Focal Length
163 mm
Specifications Flange Distance
282.3 mm | 297.2 mm | 299.86 mm | 301.56 mm | 313.81 mm
Specifications Focal Spot Diameter
10.0-13.5 | 16.0-20.0 | 21.0-25.0 | 25.0-40.0 | 9.72-15.6
Specifications M1 M2 Distance
16 mm
Specifications M2 Lens Center
19.5 mm | 22.3 mm | 30 mm | 33 mm
Specifications M2 Threaded End
37.8 mm | 39.4 mm | 39.7 mm | 40.9 mm | 45.7 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
10 mm | 15 mm
Specifications Scanning Width
90*90 mm
Specifications Scan Field
±23 mm | ±25 mm
Specifications Telecentric Angle
4 | 4.3 | 4.5 | 4.8 | 5.6
Specifications Wavelength
355 nm | 532 nm | 1064 nm
Specifications Working Distance
209.6 mm | 211.06 mm | 217.81 mm | 219.5 mm | 221.7 mm
