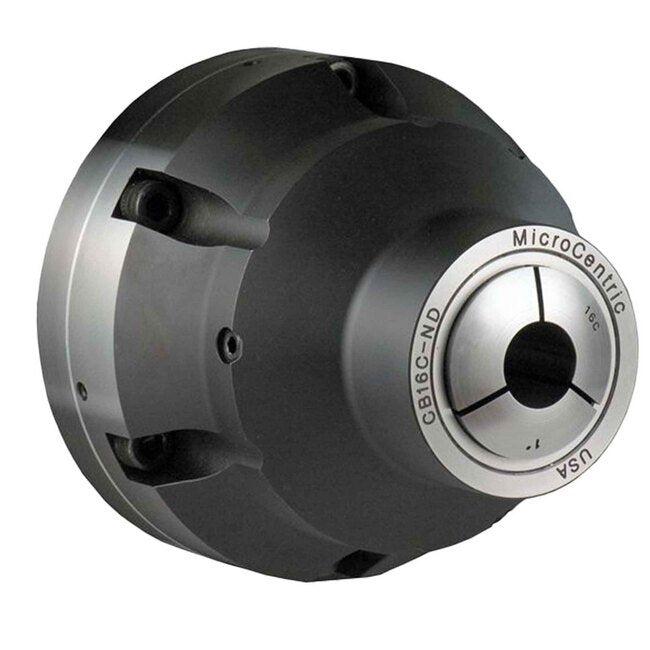

16C-ND Dead Length Collet Chucks - A2-5 Spindle Nose
16C-ND Dead Length Collet Chucks - A2-5 Spindle Nose
SKU:CON-66dadf
Enhance machining accuracy with our precision-ground 16C-ND Dead Length Collet Chuck for lasting performance.
Regular price
$489.00
Regular price
Sale price
$489.00
Unit price
per
Initiate Order
16C-ND Dead Length Collet Chucks - A2-5 Spindle Nose
$489.00
Quantity: 1
Claim Your Seller Account
16C-ND Dead Length Collet Chucks - A2-5 Spindle Nose
$489.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining accuracy with our 16C-ND Dead Length Collet Chucks. Crafted with hardened alloy steel, precision ground for lasting performance, and a sealed design to prevent chip accumulation. This modular chuck adapts to various machine spindles effortlessly. With a chuck weight of 29.0 lb, chuck stroke of 0.078 in, and a through capacity of 1.625 in, our chuck ensures precision and durability.
Product Specifications

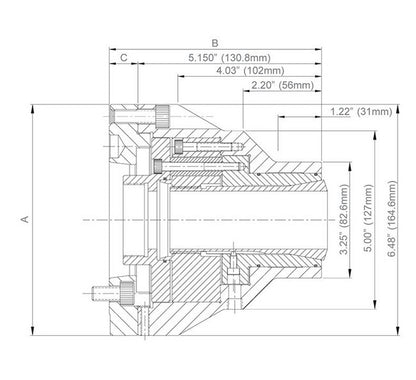

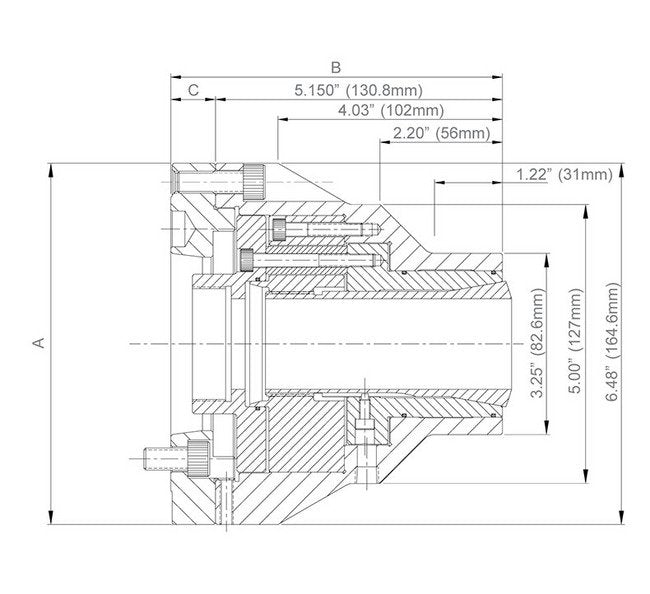

Specifications A Dimension
6.480 in | 164.6 mm
Specifications B Dimension
5.950 in | 151.1 mm
Specifications Chuck Weight
29.0 lb | 12.9 kg
Specifications Collet Model
16C
Specifications C Dimension
0.800 in | 27.9 mm
Specifications Item No
35 100 211
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-5
Specifications Through Capacity
1.625 in | 41.2 mm
