16C-ND Dead Length Collet Chucks for High-Precision Machining
16C-ND Dead Length Collet Chucks for High-Precision Machining
SKU:CON-97b3d4
Achieve precision and reliability with our 16C-ND Dead Length Collet Chucks, perfect for high-speed machining operations.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
16C-ND Dead Length Collet Chucks for High-Precision Machining
$349.99
Quantity: 1
Claim Your Seller Account
16C-ND Dead Length Collet Chucks for High-Precision Machining
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

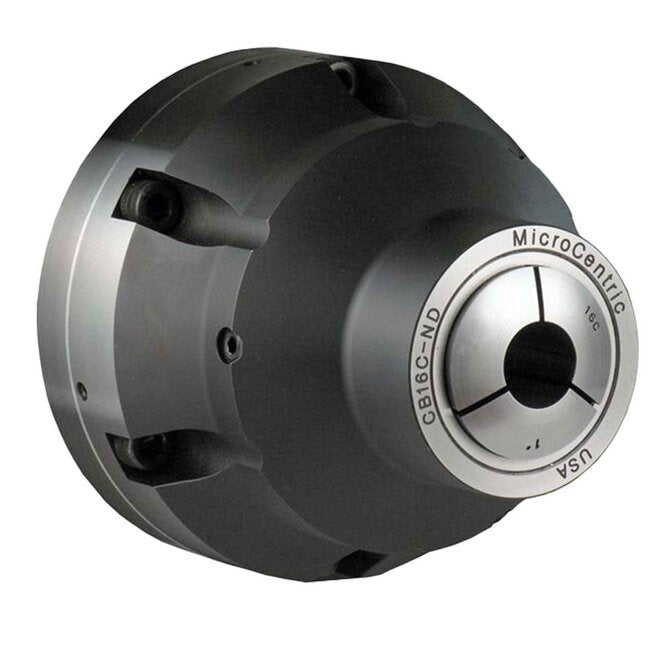

The 16C-ND Dead Length Collet Chucks are designed with a dead-length feature and a reduced nose for enhanced precision machining. Crafted from hardened alloy steel, these chucks ensure long-term performance and accuracy. With sealed internal components to prevent chip accumulation, these chucks offer reliability in machining operations. The modular design allows seamless adaptation to various machine spindle and draw tube configurations, providing versatility and efficiency in industrial settings.
Product Specifications

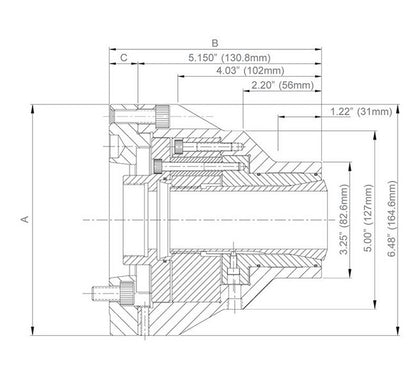

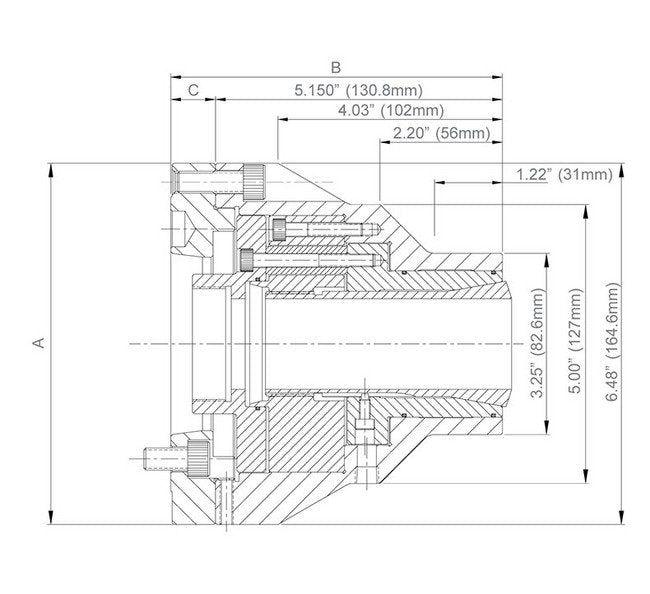

Specifications A Dimension
6.480 in | 164.6 mm
Specifications B Dimension
5.950 in | 151.1 mm
Specifications Chuck Weight
29.0 lb | 12.9 kg
Specifications Collet Model
16C
Specifications C Dimension
0.800 in | 27.9 mm
Specifications Item No
35 100 210
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
140mm
Specifications Through Capacity
1.625 in | 41.2 mm
