16C-ND Dead Length Collet Chucks for Precision Machining
16C-ND Dead Length Collet Chucks for Precision Machining
SKU:CON-5935d4
Enhance machining precision with 16C-ND Dead Length Collet Chucks. Sealed internal components for clean operation. Versatile design for various spindle configurations.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
16C-ND Dead Length Collet Chucks for Precision Machining
$549.99
Quantity: 1
Claim Your Seller Account
16C-ND Dead Length Collet Chucks for Precision Machining
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

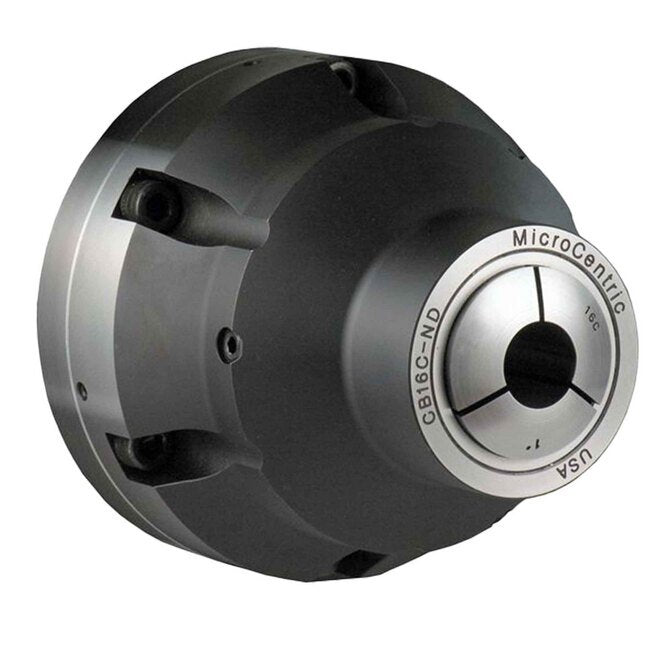

The 16C-ND Dead Length Collet Chucks are designed for precision machining applications, featuring a dead length design with reduced nose for enhanced accuracy. Crafted from hardened alloy steel and precision ground, these chucks deliver long-lasting performance. Internal components are sealed to prevent chip accumulation, ensuring a clean machining environment. The modular design allows easy adaptation to various machine spindles and draw tube configurations, offering versatility and efficiency in industrial settings.
Ready to Grow Without Cash Flow Constraints?

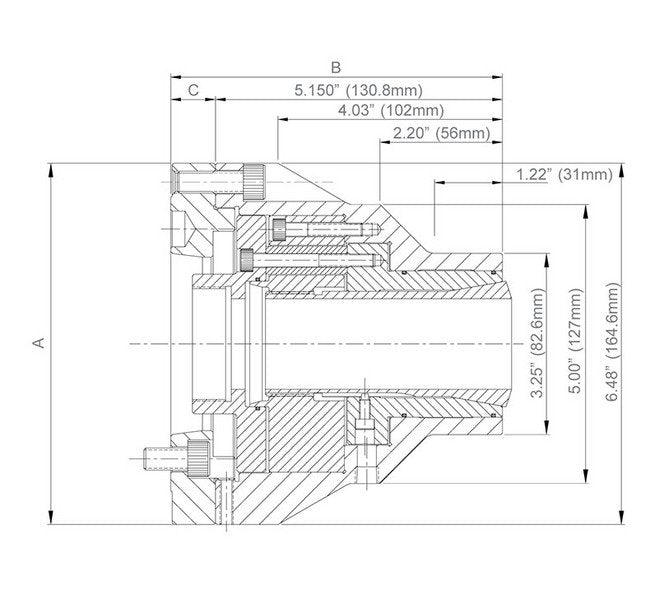

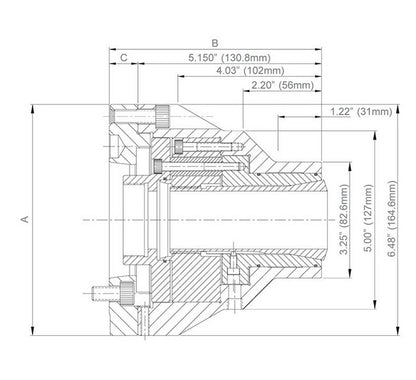

Product Specifications
Specifications A Dimension
8.250 in | 209.6 mm
Specifications B Dimension
6.775 in | 172.1 mm
Specifications Chuck Weight
36.7 lb | 16.3 kg
Specifications Collet Model
16C
Specifications C Dimension
1.625 in | 41.3 mm
Specifications Item No
35 100 213
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-8
Specifications Through Capacity
1.625 in | 41.2 mm
