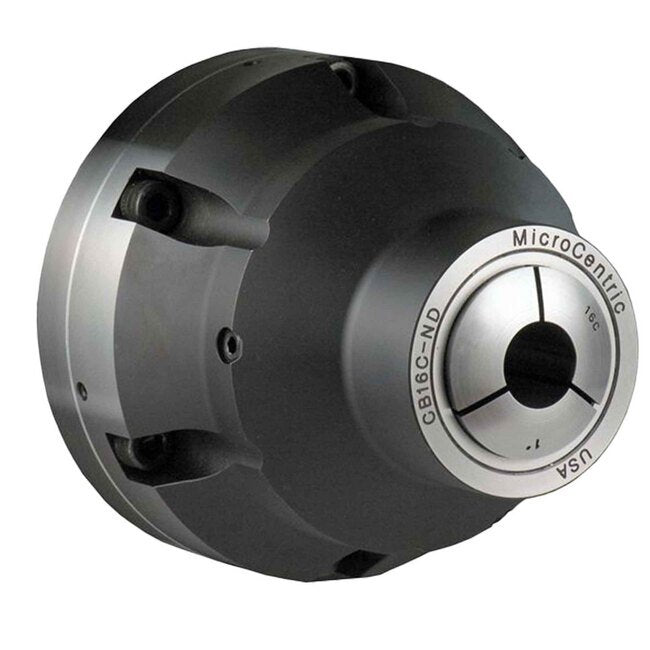

16C-ND Dead Length Collet Chucks for Precision Machining
16C-ND Dead Length Collet Chucks for Precision Machining
SKU:CON-5c500c
Experience precision and durability with our 16C-ND Dead Length Collet Chucks, ideal for machining operations. Sealed internal components for chip-free performance.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
16C-ND Dead Length Collet Chucks for Precision Machining
$599.99
Quantity: 1
Claim Your Seller Account
16C-ND Dead Length Collet Chucks for Precision Machining
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 16C-ND Dead Length Collet Chucks offer unmatched precision and durability for machining operations. Featuring a dead length design with reduced nose, all components are meticulously crafted from hardened alloy steel for exceptional accuracy and long-term performance. With sealed internal components to prevent chip accumulation, this modular chuck design ensures adaptability to various machine spindle and draw tube configurations, providing seamless operation and reliability in any setting.
Product Specifications

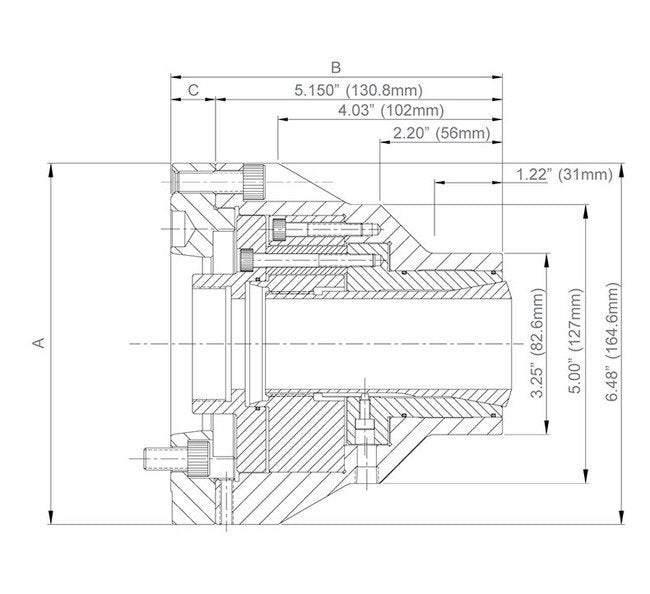

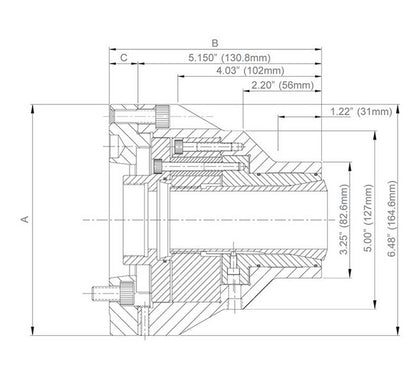

Specifications A Dimension
6.480 in | 164.6 mm
Specifications B Dimension
6.500 in | 165.1 mm
Specifications Chuck Weight
30.2 lb | 13.4 kg
Specifications Collet Model
16C
Specifications C Dimension
1.350 in | 31.4 mm
Specifications Item No
35 100 212
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-6
Specifications Through Capacity
1.625 in | 41.2 mm
