16CB500 Single Flange CB Elements
16CB500 Single Flange CB Elements
SKU:CLU-cbbf64
High-performance 16CB500 Single Flange CB Elements for reliable clutch and brake operations in industrial settings.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
16CB500 Single Flange CB Elements
$1,799.99
Quantity: 1
Claim Your Seller Account
16CB500 Single Flange CB Elements
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 16CB500 Single Flange CB Elements are designed for superior performance in drum clutches and brakes applications. With a torque rating of 35200 lb·in, maximum speed of 1550 rpm, and a robust build weighing 74 lb, these elements ensure reliable operation under demanding conditions. Featuring 10 friction shoes, these elements provide exceptional friction area and consistent performance. Additionally, the product meets various industry standards, making it ideal for institutional and government procurement needs.

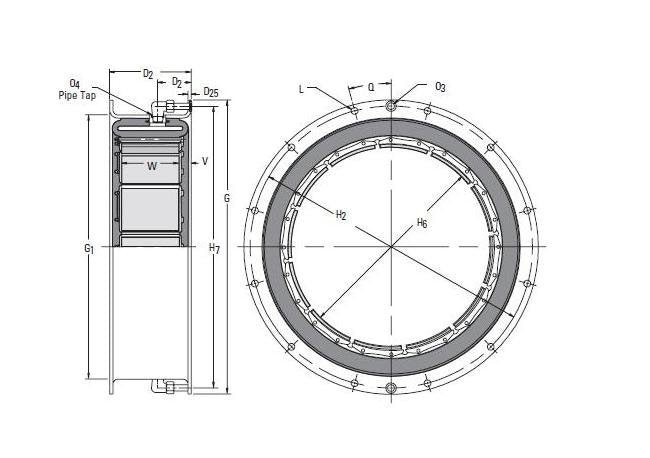

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
140 in³ | 2.3 dm³
Specifications Angle Q
22.500 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.38 E-06 bar/rpm2 | 20 E-06 psi/rpm2
Specifications Dimension D2
6.63 in | 168 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
23.500 in | 596.9 mm
Specifications Dimension G1
20.75 in | 527 mm
Specifications Dimension H2
22.500 in | 571.5 mm
Specifications Dimension H6
16.19 in | 411 mm
Specifications Dimension H7
22.25 in | 565 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
241 in² | 1554 cm²
Specifications Friction Shoe Width W
5.00 in | 127 mm
Specifications Inertia
52 lb·ft² | 2.18 kg·m²
Specifications Maximum Speed
1550 rpm
Specifications Minimum Drum Diameter
15.87 in | 403 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
10
Specifications Number Of Mounting Holes
8
Specifications Size
16CB500
Specifications Torque Rating 75 Psi55 Bar
35200 lb·in | 3980 Nm
Specifications Weight
74 lb | 34 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
