16mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
16mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
SKU:PUL-92d81e
Essential 16mm Break-Away Swivel for cable pulling, break load 650 lbs, protects cables during excess loads.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
16mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
$49.99
Quantity: 1
Claim Your Seller Account
16mm Break-Away Swivel for Fiber Optic and Coaxial Cable Pulling
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

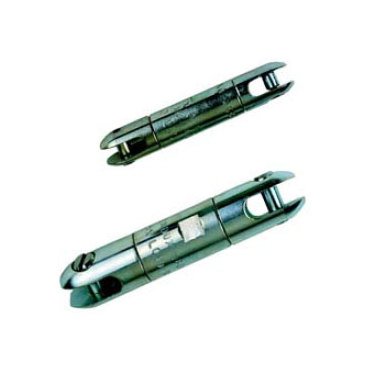

The 16mm Break-Away Swivel is a crucial tool for fiber optic and coaxial cable pulling applications. With a break load capacity of 650 lbs (2891 N), this swivel is designed to separate at ±10% of its rated break load, ensuring cable protection. If the load limit is surpassed, the interior break pin fractures, causing the swivel to detach while keeping the cable intact. The easily replaceable break pin adds to the convenience of maintenance. Note: Avoid use around bullwheels.
Product Specifications
Specifications Break Load Lb
650
Specifications Break Load N
2891
Specifications Dimension A In
5/8
Specifications Dimension A Mm
16
Specifications Dimension B In
0.28
Specifications Dimension B Mm
7
Specifications Dimension C In
3.56
Specifications Dimension C Mm
90
Specifications Dimension D In
0.79
Specifications Dimension D Mm
20
Specifications Dimension E In
0.25
Specifications Dimension E Mm
6
Specifications Dimension F In
0.37
Specifications Dimension F Mm
9
