16mm SMBTI Male Branch Tee Fitting
16mm SMBTI Male Branch Tee Fitting
SKU:SMB-a2f961
Premium 16mm Male Branch Tee Fitting for metric tubes, with i-Fitting® components ensuring safety & productivity. Industry-leading design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16mm SMBTI Male Branch Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
16mm SMBTI Male Branch Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

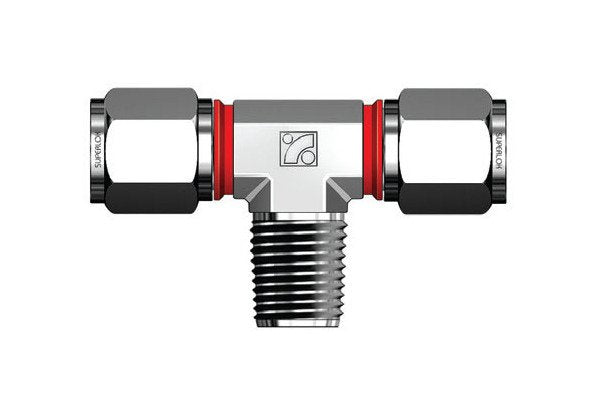

The 16mm SMBTI Male Branch Tee Fitting is a high-quality component that seamlessly connects metric tubes to female ISO tapered threads. Made from a durable alloy, this fitting ensures secure and reliable connections. Featuring i-Fitting® components, it includes a built-in gap gauge for perfect compression, enhancing safety in high-pressure environments. Designed to improve productivity and reduce costs, this industry-leading fitting is a game-changer in valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

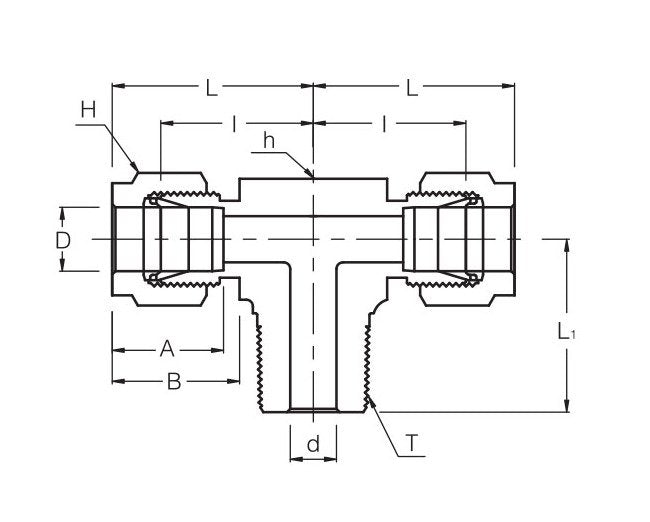

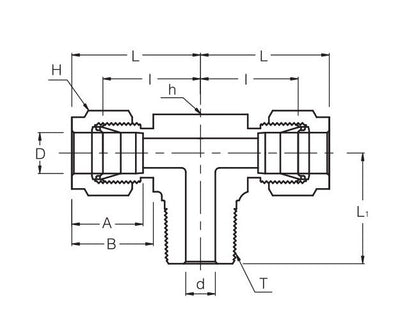

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
27.9 mm
Technical Specs Dimension L
38.0 mm
Technical Specs Dimension L1
35.1 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
11.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
16 mm
Technical Specs Width Across Flat H
25 mm
