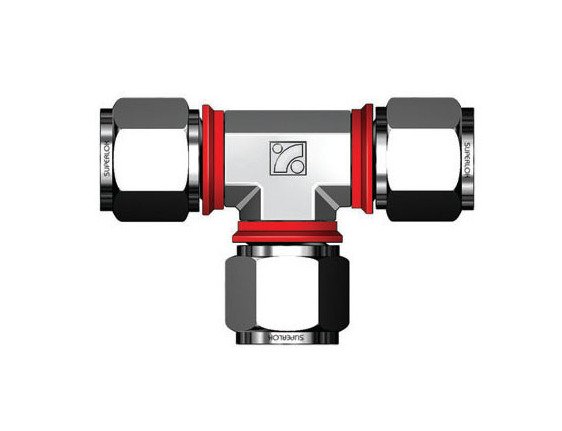

The SUTI Series 16mm Tube Outside Diameter Union Tee Fitting is designed to connect metric tubes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting boasts dimensions that ensure a secure fit and optimal performance. Featuring i-Fitting® components and a patented check ring for perfect compression, this fitting enhances installer safety in high-pressure environments, reduces costs, and improves productivity. With a range of standard sizes available and industry-changing design, the SUTI Series Union Tee Fitting is a versatile solution for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

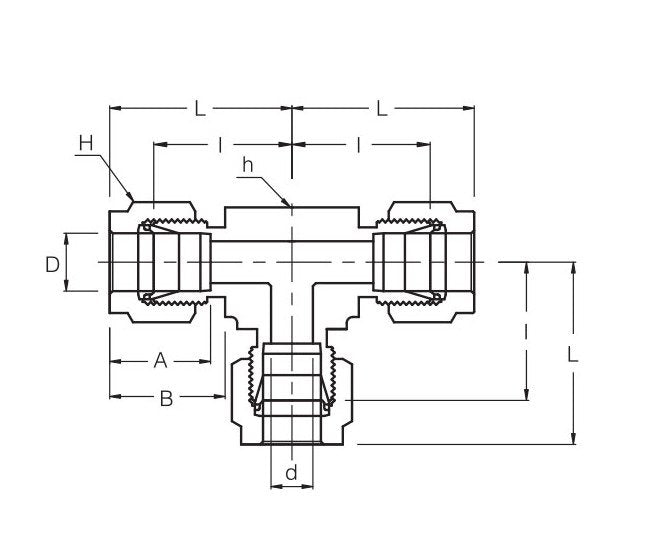

Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
28.7 mm
Technical Specs Dimension L
38.8 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
12.7 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
16 mm
Technical Specs Width Across Flat H
25 mm
