16mm Tube Union Cross Fitting
16mm Tube Union Cross Fitting
SKU:SUC-496d05
Enhance industrial connectivity with the SUCI Series 16mm Tube Union Cross Fitting, ensuring precise compression and superior safety in high-pressure applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
16mm Tube Union Cross Fitting
$29.99
Quantity: 1
Claim Your Seller Account
16mm Tube Union Cross Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

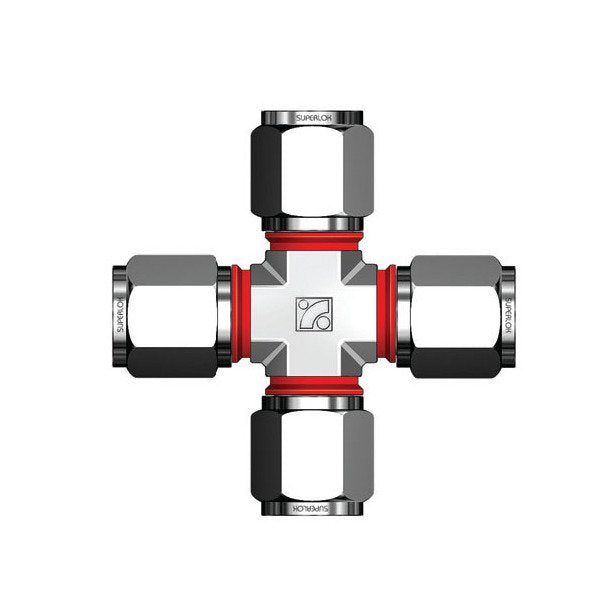

The SUCI Series 16mm Tube Union Cross Fitting is a precision-engineered metric tube connector designed for industrial applications. With a Tube Outside Diameter (D) of 16mm and made from high-quality materials like Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliable performance in diverse environments. The patented i-Fitting® design guarantees perfect compression, preventing over- and under-tightening, enhancing installer safety, and boosting productivity. Ideal for high-pressure systems and valve connections, this fitting exceeds industry standards for quality and efficiency.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

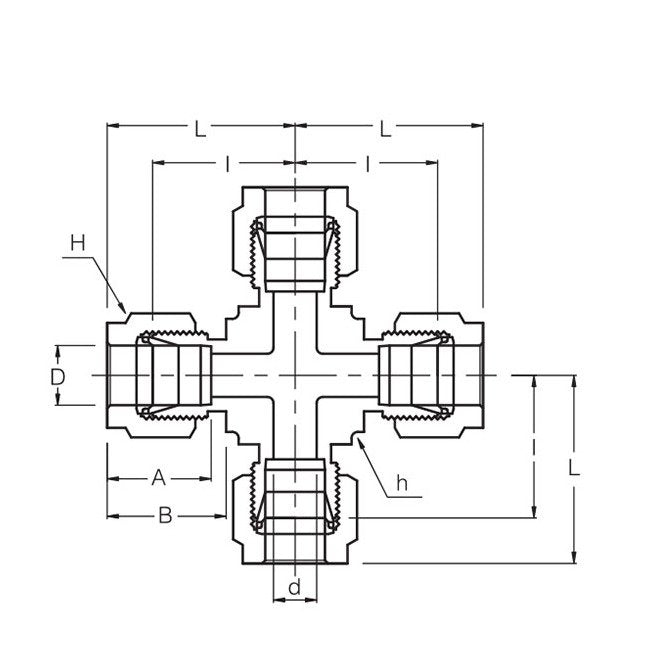

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.4 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension I
26.9 mm
Technical Specs Dimension L
37.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
12.7 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
16 mm
Technical Specs Width Across Flat H
25 mm
